HOM270 | MINIATURE CIRCUIT BREAKER, 2P, 120/240V 70A | Square D by Schneider Electric

Square D | HOM270

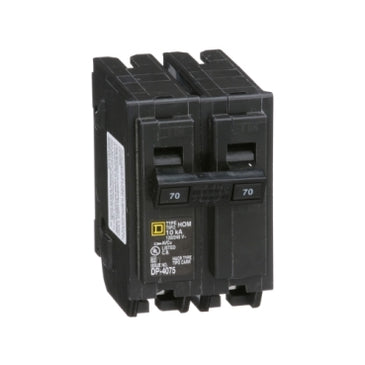

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOM270
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Square D HOM270 Documents

Datasheet More Info

Overview

Details for HOM270

MINIATURE CIRCUIT BREAKER, 2P, 120/240V 70A

MINIATURE CIRCUIT BREAKER
  • Current Rating : 70 A
  • Voltage Rating : 120/240 V AC
  • Number of Poles : 2P
  • Short Circuit Current Rating : 10 kA
  • Circuit Breaker Type : Standard
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 70A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Product
Miniature circuit-breaker
Range
Homeline
Current Rating
70 A
Certifications
UL Listed
Voltage Rating
120/240 V AC
Mounting Type
Plug-in
Number of Poles
2P
Short Circuit Current Rating
10 kA
Number of Spaces
2
Circuit Breaker Type
Standard
Ratings
HACR rated
Electrical Connection
Box lugs
Wire Size
AWG 8...AWG 2 aluminium/copper)1
tightening torque
40.71 lbf.in (4.6 N.m) (AWG 8...AWG 2)
Height
3.13 in (79.50 mm)
Width
2 in (50.80 mm)
Depth
2.98 in (75.69 mm)
Ambient air temperature for operation
104 °F (40 °C)
Category
00146-HOM 40-50A 1P;70-110A 2P
Discount Schedule
DE3D
GTIN
785901065340
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.10 in (5.334 cm)
Package 1 Width
3.20 in (8.128 cm)
Package 1 Length
3.40 in (8.636 cm)
Package 1 Weight
11.99 oz (340.0 g)
Unit Type of Package 2
CAR
Number of Units in Package 2
40
Package 2 Height
3.00 in (7.62 cm)
Package 2 Width
14.60 in (37.084 cm)
Package 2 Length
21.60 in (54.864 cm)
Package 2 Weight
29.90 lb(US) (13.562 kg)
Unit Type of Package 3
PAL
Number of Units in Package 3
1800
Package 3 Height
40.00 in (101.6 cm)
Package 3 Width
40.00 in (101.6 cm)
Package 3 Length
48.00 in (121.92 cm)
Package 3 Weight
1353.00 lb(US) (613.71 kg)
Warranty
Lifetime
