HOM250GFI | MINIATURE CIRCUIT BREAKER, 2P, 120/240V, 50A | Square D by Schneider Electric

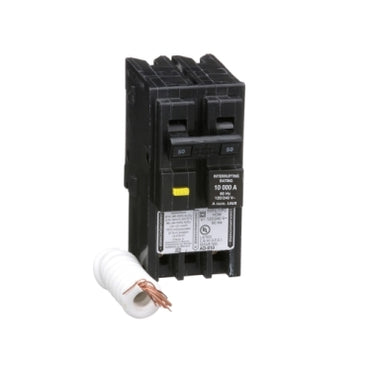

Square D | HOM250GFI
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOM250GFI

Documents and manuals

Square D HOM250GFI Documents

Overview

Details for HOM250GFI

MINIATURE CIRCUIT BREAKER, 2P, 120/240V, 50A

MINIATURE CIRCUIT BREAKER
  • Current Rating : 50 A
  • Voltage Rating : 120/240 V AC
  • Number of Poles : 2P
  • Short Circuit Current Rating : 10 kA
  • Circuit Breaker Type : Ground fault protecting class A 6 mA
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 1 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Product
Miniature circuit-breaker
Range
Homeline
Current Rating
50 A
Certifications
UL Listed
Voltage Rating
120/240 V AC
Mounting Type
Plug-in
Number of Poles
2P
Short Circuit Current Rating
10 kA
Number of Spaces
2
Circuit Breaker Type
Ground fault protecting class A 6 mA
Ratings
HACR rated
Electrical Connection
Screw clamp terminals
Wire Size
AWG 12...AWG 4 aluminium)1;AWG 14...AWG 6 copper)1
tightening torque
40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14);40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
Height
3.13 in (79.50 mm)
Width
2 in (50.80 mm)
Depth
2.98 in (75.69 mm)
Ambient air temperature for operation
104 °F (40 °C)
Category
00147-HOM 2 POLE GFI CB;40A MAX
Discount Schedule
DE3D
GTIN
785901783572
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.20 in (5.588 cm)
Package 1 Width
3.60 in (9.144 cm)
Package 1 Length
5.30 in (13.462 cm)
Package 1 Weight
19.36 oz (548.847 g)
Unit Type of Package 2
PAL
Number of Units in Package 2
1584
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
1947.00 lb(US) (883.144 kg)
Unit Type of Package 3
CAR
Number of Units in Package 3
33
Package 3 Height
5.20 in (13.208 cm)
Package 3 Width
13.70 in (34.798 cm)
Package 3 Length
20.90 in (53.086 cm)
Package 3 Weight
40.75 lb(US) (18.484 kg)
Warranty
Lifetime
