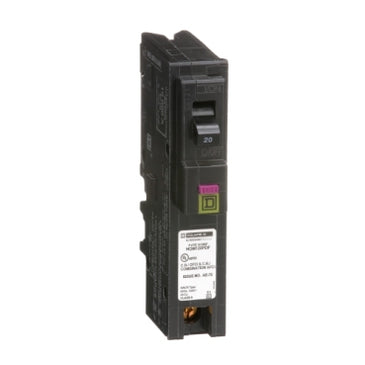

Homeline Miniature Circuit Breaker, 20A, 120V AC, Plug-in, 1-Pole, 10kA

Homeline Miniature Circuit Breaker
  • Line Rate Current: 20A
  • System Voltage: 120V AC
  • Mounting Mode: Plug-in
  • Poles Description: 1-Pole
  • Short-Circuit Current: 10kA
  • Circuit Breaker Type: Combination ARC-fault and ground fault class A 6 mA
  • Electrical Connection: Clamp terminal for 2 cables
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This dual function Homeline circuit breaker combines arc fault and ground fault circuit interrupters. This circuit breaker provides overload and short circuit protection, plus arc fault and ground fault protection in a single device in accordance with the NEC, UL1699 and UL943. This breaker has a plug on neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Product
Miniature circuit-breaker
Range
Homeline
Current Rating
20 A
Certifications
UL Listed
Voltage Rating
120 V AC
Mounting Type
Plug-in
Number of Poles
1P
Short Circuit Current Rating
10 kA
Number of Spaces
1
Circuit Breaker Type
Combination ARC-fault and ground fault class A 6 mA
Ratings
HACR rated
Electrical Connection
Clamp terminal for 2 cables
Wire Size
AWG 14...AWG 8 aluminium/copper)1;AWG 14...AWG 10 copper)2
Connections - Terminals
Plug-on neutral
tightening torque
35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
Height
3.13 in (79.50 mm)
Width
1 in (25.40 mm)
Depth
2.98 in (75.69 mm)
Ambient air temperature for operation
104 °F (40 °C)
Category
06301-HOM SINGLE POLE ARC FAULT CIRCUIT BREAKER
Discount Schedule
DE3D
GTIN
785901978343
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.00 in (10.16 cm)
Package 1 Width
5.00 in (12.7 cm)
Package 1 Length
1.20 in (3.048 cm)
Package 1 Weight
9.60 oz (272.155 g)
Unit Type of Package 2
CAR
Number of Units in Package 2
40
Package 2 Height
3.70 in (9.398 cm)
Package 2 Width
20.80 in (52.832 cm)
Package 2 Length
13.70 in (34.798 cm)
Package 2 Weight
25.90 lb(US) (11.748 kg)
Warranty
Lifetime
