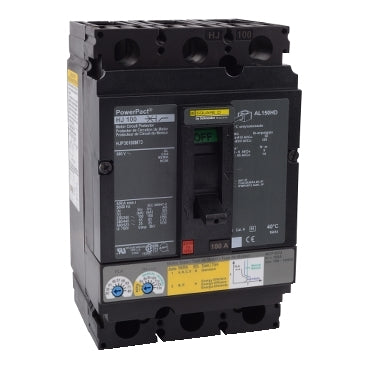

POWERPACT H CIRCUIT BREAKER, MOTOR PROTECTOR, 100A, 3P, 600V, 25KA

POWERPACT H CIRCUIT BREAKER

• Line Rated Current : 100 A
• Number of Poles : 3P
• Interrupt Rating :65 kA at 480 V AC, 25 kA at 600 V AC, 100 kA at 240 V AC
• System Voltage : 600 V AC

PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This unit has a terminal nut on the line side and mechanical lugs on the load side. This PowerPacT H, 100A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This unit has terminal nuts on the line side and lugs on the load side. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
