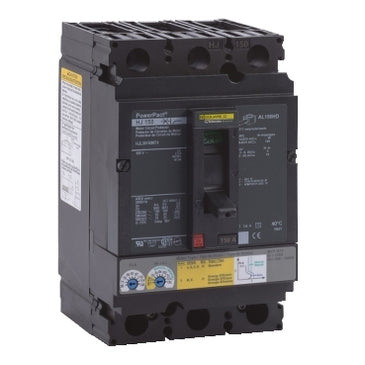

PowerPact H Circuit Breaker, MotorProtector, 50A, 3P, 600V, 25kA
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This unit has lugs on both the line and load side. This PowerPacT H, 150A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This breaker has lugs on both the line and load sides. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.Specifications
- range
- PowerPact
- product name
- PowerPact H
- Product or Component Type
- Motor Circuit Protector
- Device Application
- Distribution
- Line Rated Current
- 150 A
- Number of Poles
- 3P
- protected poles description
- 3t
- Control Type
- Toggle
- breaking capacity code
- J
- breaking capacity
- 100 kA 240 V AC 50/60 Hz UL 489;65 kA 480 V AC 50/60 Hz UL 489;25 kA 600 V AC 50/60 Hz UL 489;20 kA 250 V DC UL 489
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz IEC 60947-3
- Network Frequency
- 50/60 Hz
- [Ics] rated service breaking capacity
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2;35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2;18 kA 500/525 V AC 50/60 Hz IEC 60947-2;20 kA 250 V DC IEC 60947-2;20 kA 500 V DC IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV IEC 60947-2
- trip unit technology
- Thermal-magnetic
- [Ith] conventional free air thermal current
- 58…130 A
- magnetic tripping current
- 348…1690 A
- continuous current rating
- 80 %
- [Ui] rated insulation voltage
- 750 V IEC 60947-2
- suitability for isolation
- Yes IEC 60947-2
- utilisation category
- Category A
- AWG gauge
- AWG 14...AWG 3/0 aluminium/copper terminal
- mounting mode
- Unit mount lug)
- Mounting Support
- Lug
- electrical connection
- Lugs line;Lugs load
- terminal identifier
- AL150HD
- tightening torque
- 44.25 lbf.in (5 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10);123.91 lbf.in (14 N.m) 0.02…0.15 in² (10…95 mm²) (AWG 8...AWG 3/0)
- number of slots
- 2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
- Power wire stripping length
- 0.63 in (16 mm)
- Color
- Black
- Height
- 6.42 in (163 mm)
- Width
- 4.09 in (104 mm)
- Depth
- 3.39 in (86 mm)
- Net Weight
- 4.85 lb(US) (2.2 kg)
- Quantity per Set
- 1
- communication interface
- Modbus;Ethernet
- quality labels
- CE
- Standards
- UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
- product certifications
- UL;CSA;NOM
- IP degree of protection
- Front cover IP40 IEC 60529
- pollution degree
- 3 IEC 60947-1
- Ambient Air Temperature for Operation
- 28…158 °F (-2…70 °C)
- Ambient Air Temperature for Storage
- -58…185 °F (-50…85 °C)
- operating altitude
- < 6561.68 ft (2000 m) without derating;5000 m with derating
- Category
- 01125-HJ;JJ UNT MNT MTR CIRCUIT PROTECTR
- Discount Schedule
- DE2
- GTIN
- 785901486602
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.39 in (13.7 cm)
- Package 1 Width
- 7.40 in (18.8 cm)
- Package 1 Length
- 8.70 in (22.1 cm)
- Package 1 Weight
- 4.32 lb(US) (1.96 kg)
- Warranty
- 18 months
