HDL36125 | PowerPact H Frame Molded Case Circuit Breaker, Thermal-magnetic, 125A, 3-Poles, 600V, 14kA | Square D by Schneider Electric

Brand: Square DSKU: HDL36125

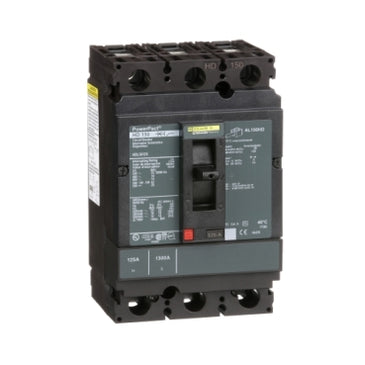

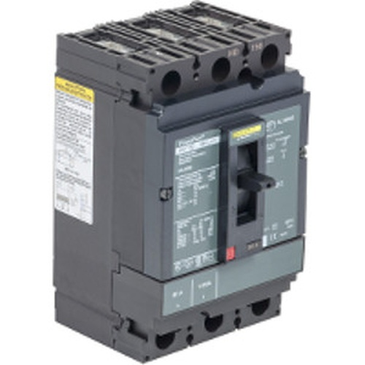

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HDL36125

Jump to: Overview & Specifications Reviews

Overview Details for HDL36125

PowerPact H Frame Molded Case Circuit Breaker, Thermal-magnetic, 125A, 3-Poles, 600V, 14kA

PowerPact H Frame Molded Case Circuit Breaker

Trip Unit Technology: Thermal-magnetic
Line Rated Current: 125A
Poles Description: 3-Poles
System Voltage: 600V AC, 250V DC
Breaking Capacity: 14kA

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 125A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

range: PowerPact
product name: PowerPact H
Product or Component Type: Circuit breaker
Device Application: Distribution
Line Rated Current: 125 A
Number of Poles: 3P
protected poles description: 3t
Control Type: Toggle
breaking capacity code: D
breaking capacity: 25 kA 240 V AC 50/60 Hz UL 489;18 kA 480 V AC 50/60 Hz;14 kA 600 V AC 50/60 Hz;20 kA 250 V DC
[Ue] rated operational voltage: 690 V AC 50/60 Hz IEC 60947-3
Network Frequency: 50/60 Hz
[Ics] rated service breaking capacity: 25 kA 220/240 V AC 50/60 Hz IEC 60947-2;18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2;14 kA 500/525 V AC 50/60 Hz IEC 60947-2;20 kA 250 V DC IEC 60947-2;20 kA 500 V DC IEC 60947-2
[Uimp] rated impulse withstand voltage: 8 kV IEC 60947-2
trip unit technology: Thermal-magnetic
magnetic tripping current: 1700 A
magnetic hold current: 900 A
continuous current rating: 80 %
[Ui] rated insulation voltage: 750 V IEC 60947-2
suitability for isolation: Yes IEC 60947-2
utilisation category: Category A
AWG gauge: AWG 14...AWG 3/0 aluminium/copper terminal
local signalling: Switched off (OFF) 1 trip indicator green)
mounting mode: Unit mount lug)
Mounting Support: Lug
electrical connection: Lugs line;Lugs load
terminal identifier: AL150HD
tightening torque: 44.25 lbf.in (5 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10);123.91 lbf.in (14 N.m) 0.02…0.15 in² (10…95 mm²) (AWG 8...AWG 3/0)
number of slots: 2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
Power wire stripping length: 0.63 in (16 mm)
Color: Black
Height: 6.42 in (163 mm)
Width: 4.09 in (104 mm)
Depth: 3.39 in (86 mm)
Net Weight: 4.85 lb(US) (2.2 kg)
Quantity per Set: 1
communication interface: Modbus;Ethernet
circuit breaker application: HACR rated
quality labels: CE
Standards: UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
product certifications: UL;CSA;NOM
IP degree of protection: Front cover IP40 IEC 60529
pollution degree: 3 IEC 60947-1
Ambient Air Temperature for Operation: 28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage: -58…185 °F (-50…85 °C)
operating altitude: < 6561.68 ft (2000 m) without derating;5000 m with derating
Category: 01110-HD;JD UNIT MT BREAKER/SWITCH
Discount Schedule: DE2
GTIN: 785901955849
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.40 in (18.796 cm)
Package 1 Width: 5.80 in (14.732 cm)
Package 1 Length: 8.60 in (21.844 cm)
Package 1 Weight: 4.12 lb(US) (1.87 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 100
Package 2 Height: 36.00 in (91.44 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 545.00 lb(US) (247.208 kg)
Warranty: 18 months
