Details for H321NRB

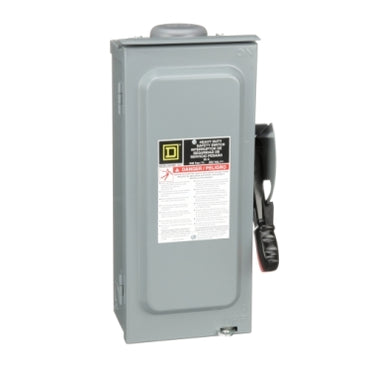

SWITCH FUSIBLE HD 240V 30A 3P

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 30A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of 240VAC & 250VDC. The enclosure is made of galvannealed steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.

Specifications

Product: Single Throw Safety Switch
Duty Rating: Heavy duty
Device Application: Heavy application
Disconnect Type: Fusible disconnect
Factory Installed Neutral: Neutral (factory installed)
Phase: 3 phase
Number of Poles: 3
Current Rating: 30 A
Voltage Rating: 250 V DC;240 V AC
Enclosure Rating: NEMA 3R galvannealed steel
Motor power hp: 1.5 hp at 240 V AC 50-60 Hz for 1 phase motors;3 hp at 240 V AC 50-60 Hz for 3 phase motors;3 hp at 240 V AC 50-60 Hz for 1 phase motors;7.5 hp at 240 V AC 50-60 Hz for 3 phase motors;5 hp at 250 V DC
Short Circuit Current Rating: 10 kA H or K;200 kA R or J
fuse type: H or K;R or J
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 4-wire (3PH + G)
Wire Size: AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
tightening torque: 45 lbf.in (5.08 N.m) 0.02 in² (13.3 mm²) (AWG 6);40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) (AWG 8);35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.06…5.261 mm²) (AWG 14...AWG 10)
Depth: 4.88 in (123.95 mm)
Width: 6.63 in (168.40 mm)
Height: 14.88 in (377.95 mm)
Net Weight: 9.55 lb(US) (4.33 kg)
Certifications: UL listed file E2875
Category: 00009-H&HU SW;2&3P;N3R;30-200A
Discount Schedule: DE1
GTIN: 785901480068
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.20 in (13.208 cm)
Package 1 Width: 7.70 in (19.558 cm)
Package 1 Length: 16.20 in (41.148 cm)
Package 1 Weight: 8.57 lb(US) (3.887 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 105
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 900.00 lb(US) (408.233 kg)
Warranty: 18 months
