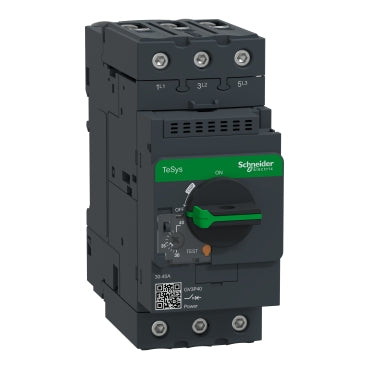

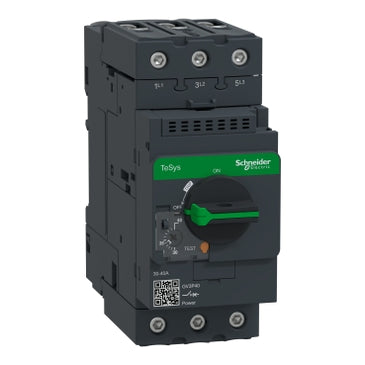

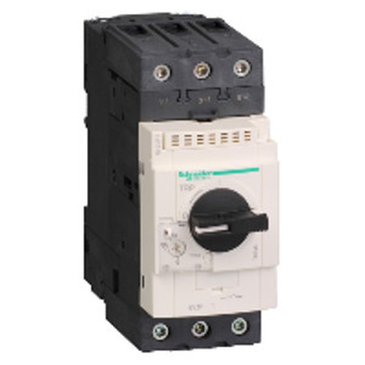

GV3P40 | TeSys GV3 Circuit Breaker, Thermal Magnetic, 3-Pole, 40A, 690VAC, EverLink BTR Screw Connectors, IP20 | Square D by Schneider Electric

Brand: Square DSKU: GV3P40

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GV3P40

Jump to: Overview & Specifications Reviews

Overview Details for GV3P40

TeSys GV3 Circuit Breaker, Thermal Magnetic, 3-Pole, 40A, 690VAC, EverLink BTR Screw Connectors, IP20

TeSys GV2 Motor Circuit Breaker

Trip Unit Technology: Thermal Magnetic
Poles Description: 3-Pole
Magnetic Tripping Current: 40A
Rated Operational Voltage: 690VAC 50/60 Hz conforming to IEC 60947-2
Connections - Terminals: EverLink BTR Screw Connectors 2 Cables
Degree of Protection: IP20

The GV3 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV3PE controls motors with full load currents up to 65 amperes. The manual starter is three pole with horsepower ratings. The manual starter is operated by a rotary handle. The Class 10 ambient compensated thermal over current is adjustable from 30 ampere to 40 ampere. This device has EVERLINK terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys Deca;TeSys Deca
product name: TeSys GV3;TeSys Deca
Product or Component Type: Motor circuit breaker
device short name: GV3P
Device Application: Motor protection
trip unit technology: Thermal-magnetic
poles description: 3P
network type: AC
utilisation category: AC-3 IEC 60947-4-1
network frequency: 50/60 Hz IEC 60947-4-1
motor power kW: 18.5 kW 400/415 V AC 50/60 Hz;22 kW 500 V AC 50/60 Hz;37 kW 690 V AC 50/60 Hz
breaking capacity: 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2;50 kA Icu 440 V AC 50/60 Hz IEC 60947-2;6 kA Icu 690 V AC 50/60 Hz IEC 60947-2;50 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2;12 kA Icu 500 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % 230/240 V AC 50/60 Hz IEC 60947-2;100 % 440 V AC 50/60 Hz IEC 60947-2;100 % 400/415 V AC 50/60 Hz IEC 60947-2;50 % 500 V AC 50/60 Hz IEC 60947-2;50 % 690 V AC 50/60 Hz IEC 60947-2
Control Type: Rotary handle
Line Rated Current: 40 A
magnetic tripping current: 560 A
[Ue] rated operational voltage: 690 V AC 50/60 Hz IEC 60947-2
[Ith] conventional free air thermal current: 40 A IEC 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-2
power dissipation per pole: 8 W
mechanical durability: 50000 cycles
electrical durability: 50000 cycles AC-3 415 V In
rated duty: Continuous IEC 60947-4-1
phase failure sensitivity: Yes IEC 60947-4-1
suitability for isolation: Yes IEC 60947-1
Width: 2.17 in (55 mm)
Height: 5.20 in (132 mm)
Depth: 5.35 in (136 mm)
Net Weight: 2.12 lb(US) (0.96 kg)
Standards: EN/IEC 60947-2;EN/IEC 60947-4-1;UL 60947-4-1;CSA C22.2 No 60947-4-1
Product Certifications: CCC;EAC;BV;LROS (Lloyds register of shipping);DNV-GL;ABS;UL;CSA;UKCA;ATEX
IP degree of protection: IP20 IEC 60529
climatic withstand: IACS E10
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) IEC 60695-2-11
ambient air temperature for operation: -4…140 °F (-20…60 °C)
operating altitude: 9842.52 ft (3000 m)
Category: 22366-MAN STR PROTECTORS-GV1/GV3
Discount Schedule: I11
GTIN: 3389119405393
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.30 in (16.000 cm)
Package 1 Width: 2.56 in (6.500 cm)
Package 1 Length: 5.75 in (14.600 cm)
Package 1 Weight: 34.67 oz (983 g)
Unit Type of Package 2: P06
Number of Units in Package 2: 120
Package 2 Height: 29.53 in (75.000 cm)
Package 2 Width: 23.62 in (60.000 cm)
Package 2 Length: 31.50 in (80.000 cm)
Package 2 Weight: 295.33 lb(US) (133.960 kg)
Warranty: 18 months
