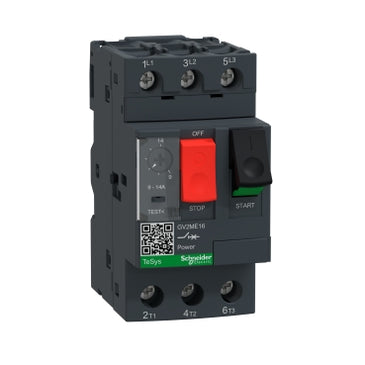

GV2ME16 | TeSys GV2 Circuit Breaker, Thermal Magnetic, 3-Pole, 14A, 690VAC, Screw Clamp Terminals, IP20 | Square D by Schneider Electric

Brand: Square DSKU: GV2ME16

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GV2ME16

Jump to: Overview & Specifications Reviews

Overview Details for GV2ME16

TeSys GV2 Circuit Breaker, Thermal Magnetic, 3-Pole, 14A, 690VAC, Screw Clamp Terminals, IP20

TeSys GV2 Circuit Breaker

Trip Unit Technology: Thermal Magnetic
Poles Description: 3-Pole
Magnetic Tripping Current: 14A
Rated Operational Voltage: 690VAC 50/60 Hz conforming to IEC 60947-2
Connections - Terminals: Screw Clamp Terminals
Degree of Protection: IP20

The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 9 ampere to 14 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys Deca;TeSys Deca
product name: TeSys GV2;TeSys Deca
Product or Component Type: Motor circuit breaker
device short name: GV2ME
Device Application: Motor protection
trip unit technology: Thermal-magnetic
poles description: 3P
network type: AC
utilisation category: AC-3 IEC 60947-4-1;Category A IEC 60947-2
network frequency: 50/60 Hz IEC 60947-4-1
motor power kW: 5.5 kW 400/415 V AC 50/60 Hz;7.5 kW 500 V AC 50/60 Hz;9 kW 690 V AC 50/60 Hz;11 kW 690 V AC 50/60 Hz
breaking capacity: 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2;3 kA Icu 690 V AC 50/60 Hz IEC 60947-2;15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2;8 kA Icu 440 V AC 50/60 Hz IEC 60947-2;6 kA Icu 500 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % 230/240 V AC 50/60 Hz IEC 60947-2;75 % 690 V AC 50/60 Hz IEC 60947-2;75 % 500 V AC 50/60 Hz IEC 60947-2;50 % 400/415 V AC 50/60 Hz IEC 60947-2;50 % 440 V AC 50/60 Hz IEC 60947-2
Control Type: Push-button
Line Rated Current: 14 A
magnetic tripping current: 170 A
[Ue] rated operational voltage: 690 V AC 50/60 Hz IEC 60947-2
[Ith] conventional free air thermal current: 14 A IEC 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-2
power dissipation per pole: 2.5 W
mechanical durability: 100000 cycles
electrical durability: 100000 cycles AC-3 415 V
rated duty: Continuous IEC 60947-4-1
phase failure sensitivity: Yes IEC 60947-4-1
suitability for isolation: Yes IEC 60947-1 § 7-1-6
Width: 1.77 in (45 mm)
Height: 3.50 in (89 mm)
Depth: 3.09 in (78.5 mm)
Net Weight: 0.57 lb(US) (0.26 kg)
Standards: EN/IEC 60947-2;EN/IEC 60947-4-1
Product Certifications: CCC;UL;CSA;EAC;ATEX;BV;LROS (Lloyds register of shipping);UKCA;DNV-GL;RINA
IP degree of protection: IP20 IEC 60529
climatic withstand: IACS E10
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) IEC 60695-2-11
ambient air temperature for operation: -4…140 °F (-20…60 °C)
operating altitude: 6561.68 ft (2000 m)
Category: 22367-MANUAL STR PROTECTOR - GV2
Discount Schedule: I11
GTIN: 3389110343175
Returnability: Yes
Country of origin: TH
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5.000 cm)
Package 1 Width: 3.43 in (8.700 cm)
Package 1 Length: 3.74 in (9.500 cm)
Package 1 Weight: 9.74 oz (276.000 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15.000 cm)
Package 2 Width: 11.81 in (30.000 cm)
Package 2 Length: 15.75 in (40.000 cm)
Package 2 Weight: 15.37 lb(US) (6.971 kg)
Warranty: 18 months
