EZM1400TB | EZ meter, center main unit, 400 A, 1 PH, 3 wire, main lugs, N3R, busbar, Al | Square D by Schneider Electric

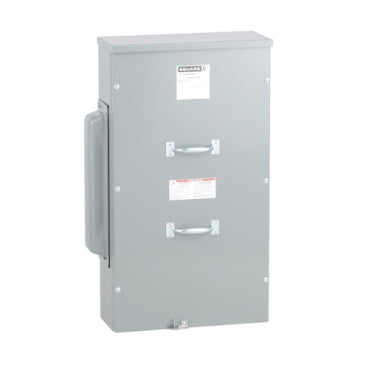

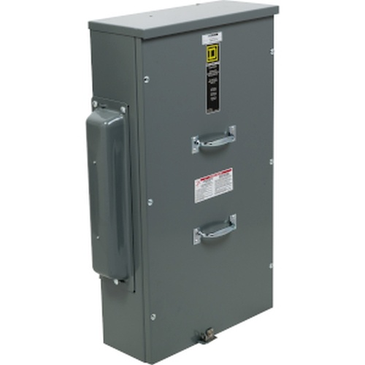

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EZM1400TB
Overview
Details for EZM1400TB
EZ meter, center main unit, 400 A, 1 PH, 3 wire, main lugs, N3R, busbar, Al
Square D EZ Meter Pak devices are the industry choice, providing better solutions to meet more multi unit construction needs than any other line in the industry. The EZM Busway tap devices have been designed with space saving in mind so that they not only meet challenging job requirements, but the compact footprint also makes them easier to handle and install. Circuit breaker, fusible switch, and terminal box mains from 400 to 1600 A maximum. Suitable for use as service equipment. This center main unit has a main lug, 400 A, 1 PH, 3 wire, and NEMA 3R enclosure. It comes with an aluminum busbar.Specifications
- Range of Product
- EZ meter-pak
- Product or Component Type
- Meter center main unit
- main type
- Main Lugs
- Included Items
- Box
- main rated current
- 400 A
- bus rated current
- 800 A
- Material
- Aluminium busbar
- Enclosure Material
- Steel
- [Ue] rated operational voltage
- 120/240 V AC
- Device mounting
- Surface
- Number of Phases
- 1 phase in;1 phase out
- service feed location
- UG;OH
- electrical connection
- Lugs 1 AWG 6...300 kcmil aluminium/copper) ground;Lugs 2 AWG 3/0...500 kcmil aluminium/copper) line;Lugs 2 AWG 3/0...500 kcmil aluminium/copper) neutral
- wiring configuration
- 3-wire
- Height
- 30.46 in (773.68 mm)
- Width
- 17.00 in (431.80 mm)
- Depth
- 6.53 in (165.86 mm)
- Product Certifications
- UL Listed
- Enclosure Rating
- NEMA 3R
- Category
- 00020-EZ METER-PAK
- Discount Schedule
- DE4
- GTIN
- 785901304852
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.20 in (20.828 cm)
- Package 1 Width
- 21.00 in (53.34 cm)
- Package 1 Length
- 31.50 in (80.01 cm)
- Package 1 Weight
- 43.00 lb(US) (19.505 kg)
- Warranty
- 18 months
