EDB34125 | Miniature Circuit Breaker, 125A, 3-Pole, 480Y/277V AC, 18/25kA, Bolt-on Mount | Square D by Schneider Electric

Brand: Square DSKU: EDB34125

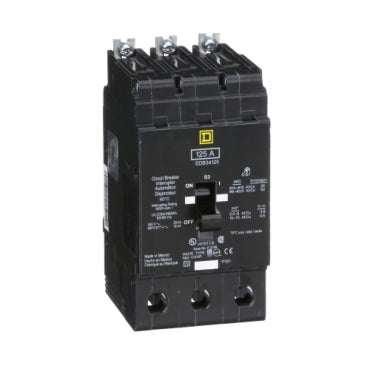

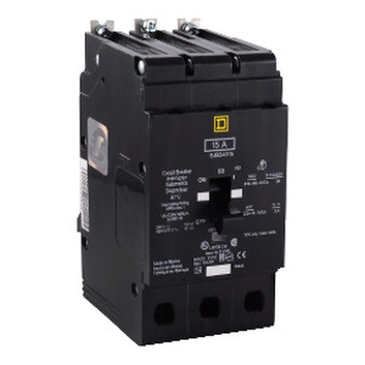

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to EDB34125

Jump to: Overview & Specifications Reviews

Overview Details for EDB34125

Miniature Circuit Breaker, 125A, 3-Pole, 480Y/277V AC, 18/25kA, Bolt-on Mount

Miniature Circuit Breaker

Line Rated Current: 125A
Number of Poles: 3-Pole
System Voltage: 480Y/277V AC
Breaking Capacity: 18 kA 277 VAC, 25kA 240 VAC
Mounting Mode: Bolt-on
Electrical Connection: Lugs

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This device is a 3 pole bolt-on breaker that is rated at 125 A at a system voltage of 480Y/277 VAC and the breaker is UL Listed as well as CSA rated. This E-Frame breaker has thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. This specific breaker is HACR rated. The breaker has aluminium lugs which have a terminal lug rating of AWG 12...AWG 2/0 (aluminium) and AWG 14...AWG 2/0 (copper). This E-frame breaker breaking capacity has been tested a numerous voltages but at two voltages the capacity is 18 kA at 480Y/277 VAC and 25 kA at 120/240 VAC. This device has a hold current of 1000 A which is the maxiumum current the breaker can be held to ensure it will trip and a trip current of 2300A which is the current value when the breaker is guaranteed to trip. The circuit breaker has a height of 5.66 in, width of 2.94 in and a depth of 4.05 in. This breaker was calibrated for 40 degrees C. HACR rated.

Specifications

Range of Product: 125 A Frame EDB-EGB-EJB
Product or Component Type: Miniature circuit-breaker
device short name: EDB
module type: E-Frame
trip unit rating: 2300 A
Line Rated Current: 125 A
maximum operating voltage: 480Y/277 V AC
AWG gauge: AWG 12...AWG 2/0 aluminium;AWG 14...AWG 2/0 copper
breaking capacity: 18 kA 277 V AC;25 kA 240 V AC;18 kA 480Y/277 V AC;25 kA 120 V AC;25 kA 120/240 V AC
circuit breaker application: HACR rated
electrical connection: Lugs aluminium
Holding Current: 1000 A
local signalling: Trip indicator
Mounting Mode: Bolt-on
number of poles: 3
number of spaces: 3
number of spaces required: 3
product destination: NF panelboard
Protection Type: Overload;Short-circuit
trip unit technology: Thermal-magnetic
breaking capacity code: D
tightening torque: 34.52 lbf.in (3.9 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10);49.56 lbf.in (5.6 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
Height: 5.66 in (143.76 mm)
Width: 2.94 in (74.68 mm)
Depth: 4.05 in (102.87 mm)
Net Weight: 4 lb(US) (1.81 kg)
Product Certifications: cULus
Ambient air temperature for operation: 104 °F (40 °C)
Category: 00931-EDB CIRCUIT BREAKERS
Discount Schedule: DE2
GTIN: 785901072966
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.80 in (12.192 cm)
Package 1 Width: 6.20 in (15.748 cm)
Package 1 Length: 9.90 in (25.146 cm)
Package 1 Weight: 3.65 lb(US) (1.656 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 392
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 1470.00 lb(US) (666.78 kg)
Warranty: 18 months
