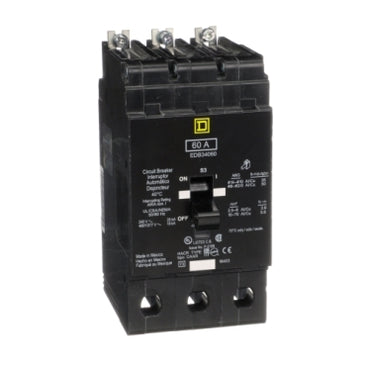

EDB34060 | Miniature Circuit Breaker, 60A, 3-Pole, 480Y/277V AC, 18/25kA, Bolt-on Mount | Square D by Schneider Electric

Brand: Square DSKU: EDB34060

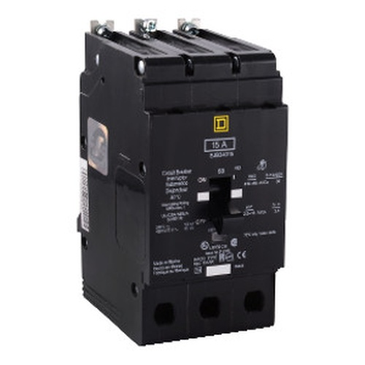

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to EDB34060

Jump to: Overview & Specifications Reviews

Overview Details for EDB34060

Miniature Circuit Breaker, 60A, 3-Pole, 480Y/277V AC, 18/25kA, Bolt-on Mount

Miniature Circuit Breaker

Line Rated Current: 60A
Number of Poles: 3-Pole
System Voltage: 480Y/277V AC
Breaking Capacity: 18 kA 277 VAC, 25kA 240 VAC
Mounting Mode: Bolt-on
Electrical Connection: Lugs

Lighting Panelboard Circuit Breakers from Square D™ by Schneider Electric™, EDB34060, this circuit breaker is proven effective and reliable, provide a wide variety of robust features for use in Square D NF panelboards. Equipped with HACR, HID rated circuit breaker with D Breaking capacity code. Provide short-circuit and overload protection. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 60A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. HACR rated.

Specifications

Range of Product: 125 A Frame EDB-EGB-EJB
Product or Component Type: Miniature circuit-breaker
device short name: EDB
module type: E-Frame
trip unit rating: 1800 A
Line Rated Current: 60 A
maximum operating voltage: 480Y/277 V AC
AWG gauge: AWG 12...AWG 2/0 aluminium;AWG 14...AWG 2/0 copper
breaking capacity: 18 kA 277 V AC;25 kA 240 V AC;18 kA 480Y/277 V AC;25 kA 120 V AC;25 kA 120/240 V AC
circuit breaker application: HACR rated
electrical connection: Lugs aluminium
Holding Current: 630 A
local signalling: Trip indicator
Mounting Mode: Bolt-on
number of poles: 3
number of spaces: 3
number of spaces required: 3
product destination: NF panelboard
Protection Type: Overload;Short-circuit
trip unit technology: Thermal-magnetic
breaking capacity code: D
tightening torque: 34.52 lbf.in (3.9 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10);49.56 lbf.in (5.6 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
Height: 5.66 in (143.76 mm)
Width: 2.94 in (74.68 mm)
Depth: 4.05 in (102.87 mm)
Net Weight: 4 lb(US) (1.81 kg)
Product Certifications: cULus
Ambient air temperature for operation: 104 °F (40 °C)
Category: 00931-EDB CIRCUIT BREAKERS
Discount Schedule: DE2
GTIN: 785901875345
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.50 in (11.43 cm)
Package 1 Width: 6.20 in (15.75 cm)
Package 1 Length: 9.80 in (24.89 cm)
Package 1 Weight: 3.66 lb(US) (1.66 kg)
Warranty: 18 months
