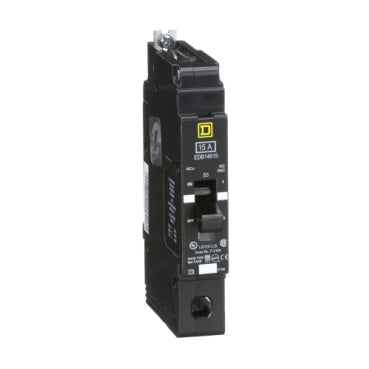

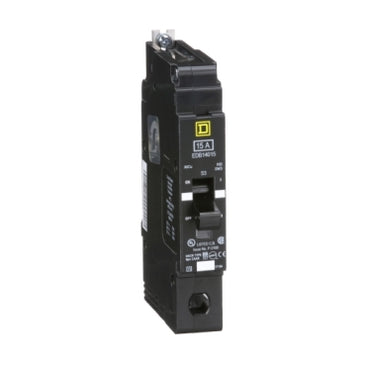

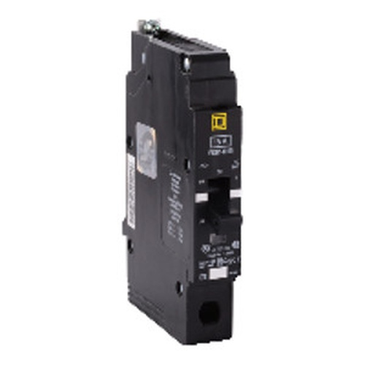

Miniature Circuit Breaker, 15A, 1-Pole, 277V, 18/25kA, Bolt-on Mount
Miniature Circuit Breaker- Line Rated Current: 15A
- Number of Poles: 1-Pole
- System Voltage: 277V
- Breaking Capacity: 18 kA 277 VAC, 25kA 240 VAC
- Mounting Mode: Bolt-on
- Electrical Connection: Lugs
Specifications
- Range of Product
- 125 A Frame EDB-EGB-EJB
- Product or Component Type
- Miniature circuit-breaker
- device short name
- EDB
- module type
- E-Frame
- trip unit rating
- 875 A
- Line Rated Current
- 15 A
- maximum operating voltage
- 277 V AC
- AWG gauge
- AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
- breaking capacity
- 18 kA 277 V AC;18 kA 240 V AC;25 kA 120 V AC;18 kA 120/240 V AC
- circuit breaker application
- Switching Duty rated;HACR rated;HID rated
- electrical connection
- Lugs aluminium
- Holding Current
- 270 A
- local signalling
- Trip indicator
- Mounting Mode
- Bolt-on
- number of poles
- 1
- number of spaces
- 1
- number of spaces required
- 1
- product destination
- NF panelboard
- Protection Type
- Short-circuit;Overload
- trip unit technology
- Thermal-magnetic
- breaking capacity code
- D
- tightening torque
- 30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)
- Height
- 5.66 in (143.76 mm)
- Width
- 0.98 in (24.89 mm)
- Depth
- 4.05 in (102.87 mm)
- Net Weight
- 2 lb(US) (0.91 kg)
- Product Certifications
- cULus;IEC
- Ambient air temperature for operation
- 104 °F (40 °C)
- Category
- 00931-EDB CIRCUIT BREAKERS
- Discount Schedule
- DE2
- GTIN
- 785901878896
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.81 in (4.6 cm)
- Package 1 Width
- 6.18 in (15.7 cm)
- Package 1 Length
- 10.39 in (26.4 cm)
- Package 1 Weight
- 21.92 oz (621.4 g)
- Warranty
- 18 months
