DTU366R | Double Throw Safety Switch, 600V, 600A, 3P, NEMA 3R | Square D by Schneider Electric

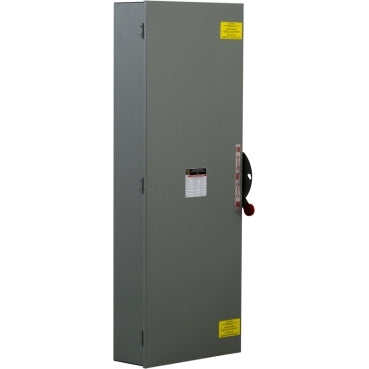

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DTU366R
Overview
Details for DTU366R
Double Throw Safety Switch, 600V, 600A, 3P, NEMA 3R
Double Throw Safety Switch- System Voltage: 600V
- Line Rated Current: 600A
- Degree of Protection: NEMA 3R Galvannealed Steel
- Number of Poles: 3
- Device Composition: None
- Disconnector Device Type: Non-fusible disconnect
- Device Mounting: Surface
Specifications
- Product
- Double Throw Safety Switch
- Duty Rating
- General duty
- Disconnect Type
- Non-fusible disconnect switch
- Factory Installed Neutral
- None
- Number of Poles
- 3
- Current Rating
- 600 A
- Voltage Rating
- 600 V AC;600 V DC
- Enclosure Rating
- NEMA 3R
- Motor power hp
- 125 hp at 240 V AC 50-60 Hz for 3 phase motors;250 hp at 480 V AC 50-60 Hz for 3 phase motors;350 hp at 600 V AC 50-60 Hz for 3 phase motors;50 hp at 250 V DC
- short-circuit current
- 10 kA H or K;100 kA R;J or T
- fuse type
- H or K;R;J or T
- Mounting Type
- Surface
- Wire Size
- 250...500 kcmil copper or aluminium
- tightening torque
- 200 lbf.in (22.60 N.m);275 lbf.in (31.07 N.m);375 lbf.in (42.37 N.m);500 lbf.in (56.49 N.m) (250...500 kcmil)
- Depth
- 8.88 in (225.55 mm)
- Width
- 23.66 in (600.96 mm)
- Height
- 63.76 in (1619.50 mm)
- Net Weight
- 175.05 lb(US) (79.4 kg)
- Certifications
- UL Listed
- Category
- 00160-DE1 MISC
- Discount Schedule
- DE1
- GTIN
- 785901568384
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 15.98 in (40.6 cm)
- Package 1 Width
- 36.18 in (91.9 cm)
- Package 1 Length
- 68.50 in (174.0 cm)
- Package 1 Weight
- 180.00 lb(US) (81.647 kg)
- Warranty
- 18 months
