BMEP581020 | Processor module M580, Level 1, Distributed | Square D by Schneider Electric

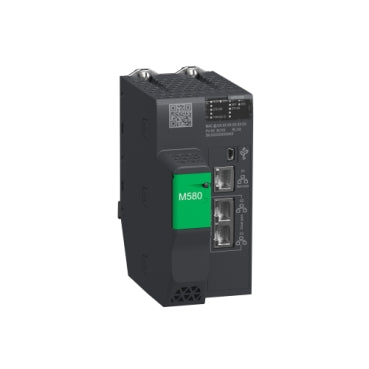

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BMEP581020
Overview
Details for BMEP581020
Processor module M580, Level 1, Distributed
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 4 rack configuration and 36 application specific channels. It is a processor module with a current consumption of 270mA at 24V DC. It supports 1024 discrete, 256 analogue local I/O channels and 64 distributed equipment. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 4MB for program, 384kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.Specifications
- Range of Product
- Modicon M580
- Product or Component Type
- Processor module
- number of racks
- 4
- Local I/O processor capacity (discrete)
- 1024 I/O
- Local I/O processor capacity (analog)
- 256 I/O
- Number of application specific channel (local rack)
- 36
- application specific I/O
- Accurate time stamping;Motion control;Counter;HART;SSI encoder;Serial link
- checks
- Process control
- control channels
- Programmable loops
- integrated connection type
- 1 Ethernet TCP/IP service port;2 Ethernet TCP/IP device network;USB type mini B
- number of distributed equipment
- 64
- communication module processor capacity
- 2 Ethernet communication module;8 AS-Interface module
- Communication Service
- DIO scanner
- memory description
- Integrated RAM;4 MB program;Integrated RAM;384 kB data;Expandable flash;4 GB data storage;Integrated RAM;10 kB system memory
- application structure
- 1 periodic fast task;2 auxiliary tasks;1 cyclic/periodic master task;64 event tasks
- number of instructions per ms
- 7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic;10 Kinst/ms 100 % Boolean
- current consumption
- 270 mA 24 V DC
- MTBF reliability
- 600000 H
- Marking
- CE
- vibration resistance
- 3 gn
- shock resistance
- 30 gn
- Ambient Air Temperature for Operation
- 32…140 °F (0…60 °C)
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- operating altitude
- 0...6561.68 ft (0...2000 m);2000...5000 m with derating factor
- relative humidity
- 5…95 % 131 °F (55 °C) without condensation
- IP Degree of Protection
- IP20
- Directives
- 2014/35/EU - low voltage directive;2014/30/EU - electromagnetic compatibility
- product certifications
- CE;UL;CSA;RCM;EAC;Merchant Navy
- standards
- EN 61131-2;EN/IEC 61010-2-201;UL 61010-2-201;CSA C22.2 No 61010-2-201;IACS E10;EN/IEC 61000-6-5;EN/IEC 61850-3
- environmental characteristic
- Hazardous location class I division 2
- supply
- Internal power supply via rack
- status LED
- 1 LED (Green) processor running (RUN);1 LED (Red) processor or system fault (ERR);1 LED (Red) I/O module fault (I/O);1 LED (Green) download in progress (DL);1 LED (Red) memory card or CPU flash fault (BACKUP);1 LED (green/red) ETH MS (Ethernet port configuration status);1 LED (green/red) Eth NS (Ethernet network status)
- Net Weight
- 1.87 lb(US) (0.849 kg)
- Category
- 18161-MODICON M580 CONTROLLERS HSBY
- Discount Schedule
- PC34
- GTIN
- 3595864174303
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.54 in (9.0 cm)
- Package 1 Width
- 7.09 in (18.0 cm)
- Package 1 Length
- 9.92 in (25.2 cm)
- Package 1 Weight
- 30.69 oz (870.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 6
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 12.48 lb(US) (5.66 kg)
