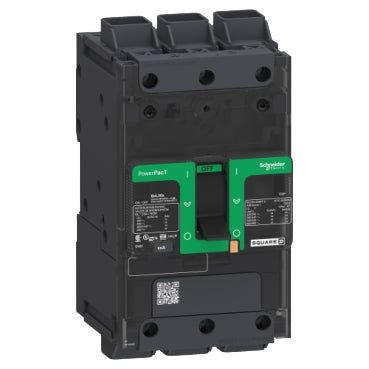

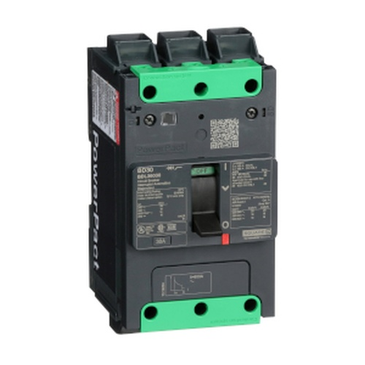

PowerPact B Circuit Breaker, 30A, 3P, 600Y/347V AC, 14kA at 600Y/347 UL EverLink
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 30A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.Specifications
- range
- PowerPact
- product name
- PowerPact B
- device short name
- BD 030
- Product or Component Type
- Circuit breaker
- Device Application
- Distribution
- Line Rated Current
- 30 A
- Number of Poles
- 3P
- Control Type
- Toggle
- breaking capacity code
- D
- breaking capacity
- 25 kA 208Y/120 V AC 50/60 Hz UL 489;25 kA 240 V AC 50/60 Hz UL 489;18 kA 480/277 V AC 50/60 Hz UL 489;18 kA 480 V AC 50/60 Hz UL 489;14 kA 600Y/347 V AC 50/60 Hz UL 489;10 kA 250 V DC UL 489
- [Ue] rated operational voltage
- 525 V AC 50/60 Hz UL 489
- Network Frequency
- 50/60 Hz
- [Ics] rated service breaking capacity
- 14 kA 220...240 V AC 50/60 Hz IEC 60947-2;18 kA 500...525 V AC 50/60 Hz IEC 60947-2;25 kA 380...415 V AC 50/60 Hz IEC 60947-2;14 kA 440 V AC 50/60 Hz IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV IEC 60947-2
- trip unit technology
- Thermal-magnetic
- continuous current rating
- 80 %
- [Ui] rated insulation voltage
- 800 V IEC 60947-2
- suitability for isolation
- Yes IEC 60947-2
- utilisation category
- Category A
- Mechanical durability
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Electrical durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- connection pitch
- 1.06 in (27 mm)
- AWG gauge
- AWG 6...AWG 2/0 fine stranded aluminium/copper;AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- local signalling
- Presence of auxiliary contacts flag green)
- mounting mode
- Clip-on 35 x 15 mm symmetrical DIN rail);By screws plate)
- electrical connection
- Everlink lug line;Everlink lug load
- tightening torque
- 44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4);79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
- number of slots
- 1 auxiliary switch OF plug-in);1 voltage release MN or MX plug-in);1 alarm switch SD plug-in)
- Power wire stripping length
- 0.79 in (20 mm)
- Color
- Gray RAL 7016)
- 9 mm pitches
- 9
- Height
- 5.39 in (137 mm)
- Width
- 3.19 in (81 mm)
- Depth
- 3.15 in (80 mm)
- Net Weight
- 2.37 lb(US) (1.074 kg)
- Quantity per Set
- Set of 1
- circuit breaker application
- HACR rated
- quality labels
- CE
- Standards
- EN/IEC 60947-5-1;UL 489;NMX J-266;NEMA AB1;CSA C22.2 No 5;GB 14048.2;EN/IEC 60947-2
- product certifications
- UL;IEC;CCC;EAC;CSA;NOM
- IP degree of protection
- Front cover IP40 IEC 60529
- IK degree of protection
- IK07 IEC 62262
- pollution degree
- 3 IEC 60947-1
- Ambient air temperature for operation
- -13…158 °F (-25…70 °C)
- Ambient Air Temperature for Storage
- -58…185 °F (-50…85 °C)
- operating altitude
- < 6561.68 ft (2000 m) without derating;5000 m with derating
- Category
- 01130-BD UNIT MOUNT BREAKER/SWITCH
- Discount Schedule
- DE2
- GTIN
- 3606481153029
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.50 in (8.9 cm)
- Package 1 Width
- 6.50 in (16.5 cm)
- Package 1 Length
- 10.12 in (25.7 cm)
- Package 1 Weight
- 3.11 lb(US) (1.41 kg)
