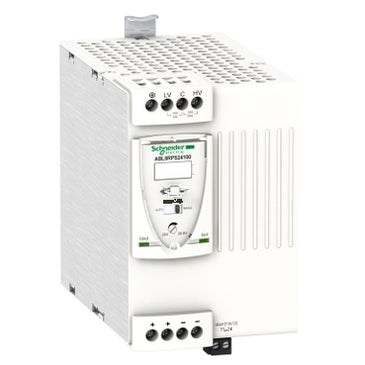

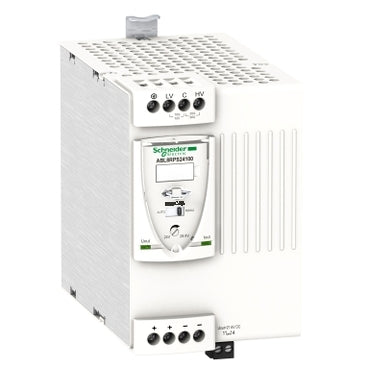

ABL8RPS24100 | Power Supply - 24VDC, 10 AMP | Square D by Schneider Electric

Brand: Square DSKU: ABL8RPS24100

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ABL8RPS24100

Jump to: Overview & Specifications Reviews

Overview Details for ABL8RPS24100

Power Supply - 24VDC, 10 AMP

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 10A at 24V DC and a rated power output of 240W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 85mm-wide. It weighs 1,000kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD08, GB2CD12, GV2RT07 and GV2ME07 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Specifications

Range of Product: Modicon Power Supply
Product or Component Type: Power supply
power supply type: Regulated switch mode
Nominal input voltage: 100...120 V AC single phase N-L1;200...500 V AC phase to phase L1-L2
Kw Rating: 240 W
output voltage: 24 V DC
power supply output current: 10 A
permissible temporary current boost: 1.5 x In for 4 s)
anti-harmonic filter: Low frequency harmonic currents
Input voltage limits: 170...550 V AC;85...132 V AC
inrush current: 30 A
power factor: 0.68 at 240 V AC;0.69 at 120 V AC
efficiency: 87 %
Output voltage adjustment: 24...28.8 V adjustable
power dissipation in W: 31 W
provided equipment: Power factor correction filter IEC 61000-3-2
output protection type: Against overload manual or automatic reset;Against overvoltage 30...32 V;manual reset;Against short-circuits manual or automatic reset;Against undervoltage tripping if U < 21.6 V;Thermal automatic reset
connections - terminals: Removable screw terminal block 2 x 2.5 mm²;diagnostic relay;Screw type terminals 3 x 0.5...3 x 4 mm²;AWG 22...AWG 12) input connection;Screw type terminals 1 x 0.5...1 x 4 mm²;AWG 22...AWG 12) input ground connection;Screw type terminals 4 x 0.5...4 x 4 mm²;AWG 22...AWG 12) output connection;Screw type terminals 1 x 0.5...1 x 4 mm²;AWG 22...AWG 12) output ground connection
status LED: 1 LED (green and red) output voltage;1 LED (green;red and orange) output current
Depth: 5.71 in (145 mm)
Height: 4.92 in (125 mm)
Width: 3.39 in (86 mm)
Net Weight: 2.20 lb(US) (1 kg)
output coupling: Parallel;Series
Marking: CE
mounting support: 35 x 7.5 mm symmetrical DIN rail;35 x 15 mm symmetrical DIN rail
operating position: Vertical
supply: SELV EN/IEC 60950-1;SELV EN/IEC 60204-1;SELV IEC 60364-4-41
dielectric strength: 3500 V with between input and ground;4000 V with between input and output;500 V with between output and ground
Standards: UL 508;CSA C22.2 No 60950-1;EN/IEC 62368-1
product certifications: CCSAus;EAC;KC;RCM;UL
environmental characteristic: EMC EN 61000-6-1;EMC EN 61000-6-3;EMC EN 55024;EMC EN/IEC 61000-6-4;EMC EN/IEC 61204-3;Safety EN/IEC 60950-1;Safety EN/IEC 61204-3
operating altitude: 6561.68 ft (2000 m)
IP degree of protection: IP20 conforming to EN/IEC 60529
Ambient air temperature for operation: 122…140 °F (50…60 °C) with derating factor mounting position A < 6561.68 ft (2000 m);-13…122 °F (-25…50 °C) without derating mounting position A < 6561.68 ft (2000 m)
Category: 22525-ABL8 AND ABL7 POWER SUPPLIE
Discount Schedule: CP12
GTIN: 3389119405621
Returnability: Yes
Country of origin: PH
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.49 in (11.4 cm)
Package 1 Width: 6.38 in (16.2 cm)
Package 1 Length: 7.09 in (18.0 cm)
Package 1 Weight: 3.56 lb(US) (1.615 kg)
Unit Type of Package 2: S06
Number of Units in Package 2: 60
Package 2 Height: 28.94 in (73.5 cm)
Package 2 Width: 23.62 in (60.0 cm)
Package 2 Length: 31.50 in (80.0 cm)
Package 2 Weight: 249.12 lb(US) (113.0 kg)
Warranty: 18 months
