9422CSF10 | OPERATING MECHANISM CABLE MECHANISM NEMA | Square D by Schneider Electric

Brand: Square DSKU: 9422CSF10

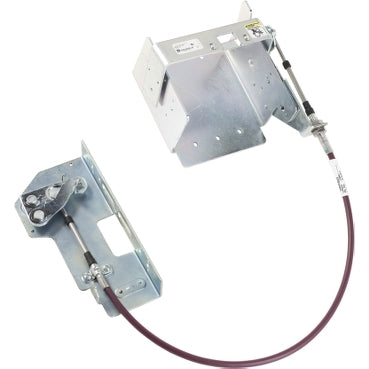

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9422CSF10

Jump to: Overview & Specifications Reviews

Overview Details for 9422CSF10

OPERATING MECHANISM CABLE MECHANISM NEMA

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with Compact NSF, PowerPact H and PowerPact J circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250 A. This mechanism has a 120 inch long cable. A 9422A operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified

Specifications

Range: 9422C
Product: Single Cable Operating Mechanism
Circuit Breaker Type: MG-NSF 2;MG-NSF 3;PowerPact H or J 2;PowerPact H or J 3
Included: Ordered separately
Number of Cables: 1
Cable Length: 120 in
Category: 21732-9422
Discount Schedule: CP1
GTIN: 785901113355
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.00 in (17.78 cm)
Package 1 Width: 12.50 in (31.75 cm)
Package 1 Length: 13.50 in (34.29 cm)
Package 1 Weight: 6.31 lb(US) (2.862 kg)
Warranty: 18 months
