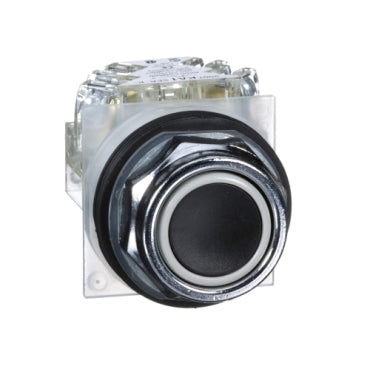

9001KR1BH13 | Harmony 9001K 30mm Pushbutton Type K, 10A | Square D by Schneider Electric

Brand: Square DSKU: 9001KR1BH13

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9001KR1BH13

Jump to: Overview & Specifications Reviews

Overview Details for 9001KR1BH13

Harmony 9001K 30mm Pushbutton Type K, 10A

Harmony 9001K Pushbutton Type K

Mounting Diameter: 30mm
Type of Operator: Spring Return
Operator Profile: Flush, black marking: unmarked
Shape of Signaling Unit Head: Octagonal
Contacts Type and Composition: 1 C/O
Connections - Terminals: Screw clamp terminals
Degree of Protection: IP66 conforming to IEC 60529

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Specifications

Range of Product: Harmony 9001K
Product or Component Type: Push-button
device short name: 9001K
type of operator: spring return
operator profile: Black flush;unmarked
operator additional information: Metal guard
bezel material: Metal
mounting diameter: 1.18 in (30 mm)
shape of signaling unit head: Octagonal
contacts type and composition: 1 C/O
connections - terminals: Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
tightening torque: 7.08 lbf.in (0.8 N.m) IEC 60947-1
shape of screw head: Cross slotted
mechanical durability: 5000000 cycles
operating position: Any position
[Ie] rated operational current: 3 A 240 V;AC-15;A600-Q600 NEMA;0.55 A 125 V;DC-13;A600-Q600 NEMA
[Ui] rated insulation voltage: 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV IEC 60947-1
contacts material: Silver alloy contacts
contact operation: Standard
positive opening: Without
short-circuit protection: 10 A cartridge fuse IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A
[Icm] rated short-circuit making capacity: 12 kA 600 V AC-15;7200 VA;15 kA 480 V AC-15;7200 VA;30 kA 240 V AC-15;7200 VA;60 kA 120 V AC-15;7200 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13
rated breaking capacity: 3 kA 240 V AC-15;720 VA;6 kA 120 V AC-15;720 VA;1.2 kA 600 V AC-15;720 VA;1.5 kA 480 V AC-15;720 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13
terminals description ISO n°1: (13-14-11-12)OF
CAD overall width: 1.89 in (48 mm)
CAD overall height: 1.77 in (45 mm)
CAD overall depth: 2.20 in (56 mm)
Net Weight: 0.27 lb(US) (0.121 kg)
device presentation: Complete product
cap/operator or lens colour: Black
operator profile: Flush
type of operator: Spring return
size: 30 mm
Standards: JIS C 852;UL 508;EN/IEC 60947-5-1;JIS C 4520;CSA C22.2 No 14;EN/IEC 60947-5-4;EN/IEC 60947-1
Product Certifications: UL 508;NEMA
protective treatment: TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -13…158 °F (-25…70 °C)
vibration resistance: 7 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 50 gn IEC 60068-2-27
electrical shock protection class: Class II IEC 61140
IP degree of protection: IP66 IEC 60529
NEMA degree of protection: NEMA 1;NEMA 12;NEMA 13;NEMA 2;NEMA 3;NEMA 3R;NEMA 4
Category: 21426-9001 K (NOT KA;KM;KX)
Discount Schedule: CS1
GTIN: 3389110910735
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.05 in (5.2 cm)
Package 1 Width: 2.20 in (5.6 cm)
Package 1 Length: 3.54 in (9.0 cm)
Package 1 Weight: 4.51 oz (128.0 g)
Unit Type of Package 2: S01
Number of Units in Package 2: 16
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 5.91 in (15.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 4.96 lb(US) (2.248 kg)
Warranty: 18 months
