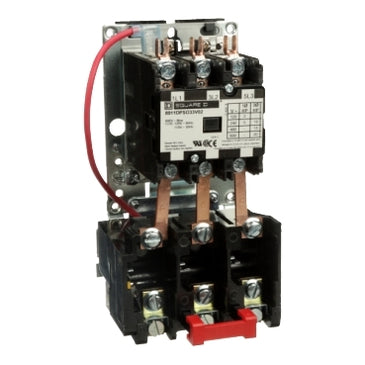

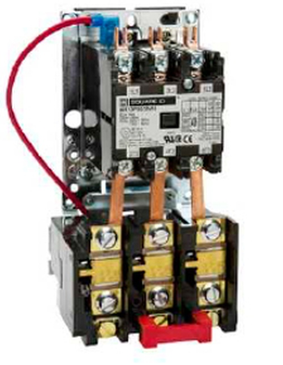

8911DPSO33V02 | Definite Purpose Starter, 30A, Open, 110V 50 Hz, 120V 60 Hz, 3-Poles, 3-Phase | Square D

Brand: Square DSKU: 8911DPSO33V02

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8911DPSO33V02

Jump to: Overview & Specifications Reviews

Overview Details for 8911DPSO33V02

Definite Purpose Starter, 30A, Open, 110V 50 Hz, 120V 60 Hz, 3-Poles, 3-Phase

Definite Purpose Starter

Line Rated Current: 30A
Poles Description: 3-Pole
Number of Phases: 3-Phase
Degree of Protection: Open Device
Control Circuit Voltage: 110V AC 50 Hz, 120V AC 60 Hz

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 30 amperes. This starter has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. It has a 10 HP at 230 VAC, 15 HP at 460 VAC and 20 HP at 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn't have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Specifications

Product: Definite Purpose Starter
Ampere Rating: 30 A
Horsepower Rating: 2 hp 115 V AC;1 phase;5 hp 230 V AC;1 phase;10 hp 230 V AC;3 phase;15 hp 460 V AC;3 phase;20 hp 575 V AC;3 phase
Maximum Voltage Rating: 600 V AC
Control Circuit Voltage: 110 V AC 50 Hz;120 V AC 60 Hz
Phase: 3 phase
Enclosure Rating: Not rated (open device)
Locked Rotor Amperes: 180 A 230 V AC;150 A 460 V AC;120 A 575 V AC
Number of Poles: 3P
Range: DPS
Overload Type: Melting alloy
Number of Thermal Units: 3
Category: 21381-8911 DP
Discount Schedule: CP1
GTIN: 785901116738
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.00 in (12.7 cm)
Package 1 Width: 4.70 in (11.938 cm)
Package 1 Length: 7.80 in (19.812 cm)
Package 1 Weight: 2.38 lb(US) (1.08 kg)
Warranty: 18 months
