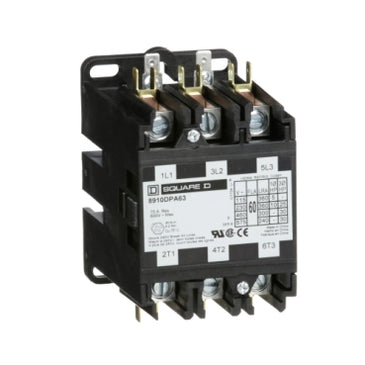

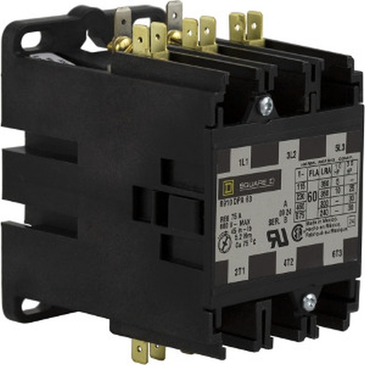

8910DPA63V09 | Definite Purpose Contactor Type DPA, 60A, 3-Poles, 220 VAC 50HZ, 208-240 VAC 60Hz | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8910DPA63V09
Overview
Details for 8910DPA63V09
Definite Purpose Contactor Type DPA, 60A, 3-Poles, 220 VAC 50HZ, 208-240 VAC 60Hz
Definite Purpose Contactor:- Range of Product: DPA
- Line Rated Current: 60A
- Motor Power Horsepower: 5HP 115VAC, 10HP 230VAC, 30HP 460VAC, 30HP 575VAC, 25HP 230VAC
- Number of Phases: 3-Phase
- Number of Poles: 3-Pole
- Control Circuit Voltage: 220 VAC 50Hz, 208-240 VAC 60Hz
- Enclosure Rating: Open
- Mounting: Panel
- System Voltage: 600VAC
- Locked Rotor Rated Current: 360A 277 VAC, 300A 460 VAC, 240A 575 VAC
- Electrical Connection: Quick Connect Terminals, Box Lugs
Specifications
- Product or Component Type
- Definite Purpose Contactor
- Line Rated Current
- 60 A
- Number of Poles
- 3P
- pole contact composition
- 3 NO
- Range of Product
- DPA
- Maximum Horse Power Rating
- 5 hp 115 V AC;1 phase;10 hp 230 V AC;1 phase;30 hp 460 V AC;3 phase;30 hp 575 V AC;3 phase;25 hp 230 V AC;3 phase
- locked rotor rated current
- 360 A 277 V AC;300 A 460 V AC;240 A 575 V AC
- [Ue] rated operational voltage
- 600 V AC
- [Uc] control circuit voltage
- 208...240 V AC 60 Hz;220 V AC 50 Hz
- Phase
- 3 phase
- Electrical Connection
- Box lugs;Quick connect terminals
- Product Certifications
- UL Recognized;CSA
- Category
- 21346-8910 DPA 6-(60 AMP)
- Discount Schedule
- CP1B
- GTIN
- 785901080794
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.80 in (9.652 cm)
- Package 1 Width
- 4.50 in (11.43 cm)
- Package 1 Length
- 2.80 in (7.112 cm)
- Package 1 Weight
- 24.00 oz (680.389 g)
- Warranty
- 18 months
