8903LG1200V02 | LIGHTING CONTACTOR 600VAC | Square D by Schneider Electric

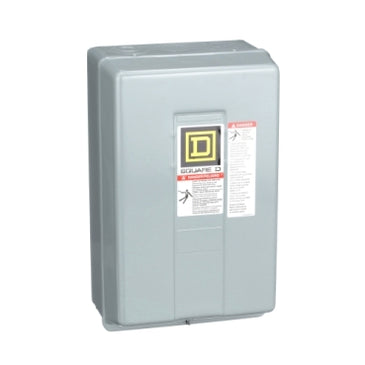

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8903LG1200V02
Overview Details for 8903LG1200V02
LIGHTING CONTACTOR 600VAC
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 12 pole device has 12 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.Specifications
- Product or Component Type
- Electrically Held Lighting Contactor
- Range of Product
- 8903L
- Control Circuit
- Separate control circuit
- Control Circuit Voltage
- 110 V AC 50 Hz;120 V AC 60 Hz
- inrush power in VA
- 180 VA 60 Hz;170 VA 50 Hz
- hold-in power consumption in VA
- 35 VA 60 Hz;35 VA 50 Hz
- Current Rating
- 20 A tungsten;30 A fluorescent
- Number of Poles
- 12P 12 NO
- Control Unit
- No control units
- Pilot Light
- No indicator
- Electrical Connection
- Screw-clamp terminals
- Height
- 12.68 in (322 mm)
- Depth
- 6.02 in (153 mm)
- Width
- 7.80 in (198 mm)
- Net Weight
- 11.00 lb(US) (4.99 kg)
- Enclosure Type
- NEMA 1 painted sheet steel surface
- Product Certifications
- UL Listed;CSA
- Category
- 21321-8903 L (NOT LX)
- Discount Schedule
- CP1
- GTIN
- 785901851615
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.20 in (18.3 cm)
- Package 1 Width
- 8.31 in (21.1 cm)
- Package 1 Length
- 13.70 in (34.8 cm)
- Package 1 Weight
- 11.07 lb(US) (5.02 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 50
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 553.50 lb(US) (251.062 kg)
- Warranty
- 18 months
