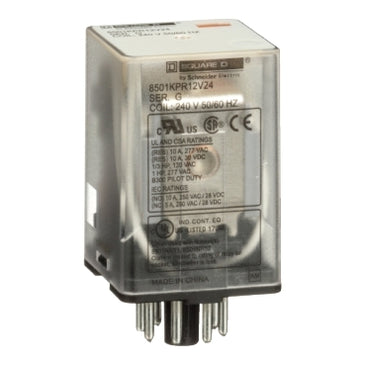

8501KPR12V24 | 8501K General Purpose Plug-in Relay, 8 pin plug-in, 2 Poles, DPDT, 240V AC | Square D by Schneider Electric

Brand: Square DSKU: 8501KPR12V24

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501KPR12V24

Jump to: Overview & Specifications Reviews

Overview Details for 8501KPR12V24

8501K General Purpose Plug-in Relay, 8 pin plug-in, 2 Poles, DPDT, 240V AC

8501K General Purpose Plug-in Relay

8 pin plug-in
Poles Description: 2 Poles
Switch Function: DPDT
Control Circuit Voltage: 240V AC
Local Signaling: Indicator light when relay energized
Rated Power in HP: 1 HP at 277V, 0.33 HP at 120V

8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 240 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
