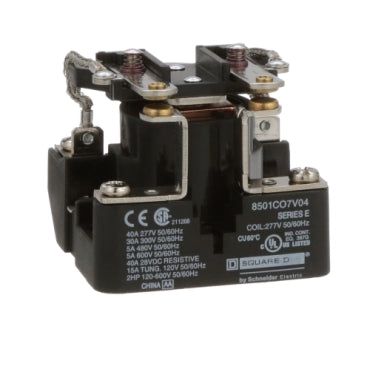

8501CO7V04 | Power Relay - 277VAC Coil - DPST - 2NO-0NC - 1.5 HP - 30A Resistive at 300V | Square D (OBSOLETE)

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Power Relay - 277VAC Coil - DPST - 2NO-0NC - 1.5 HP - 30A Resistive at 300V

Power Relay:

• DPDT
• Voltage Code: V04 = 277 AC Voltage - 50/60 Hz
• Fixed Contacts: 2 N.O.
• AC Operated Open Type
• Max Contact Voltage: 600
• Resistive Ampere Rating 75% Power Factor: 40 @ 277 Vac and 5 @ 600 V
• Maximum Single Phase Horsepower: 2 @ 120 V, 2 @ 220 V and 2 @ 600 V
• Maximum Coil Power Consumption: 10 VA - AC Coil and 4 W - DC Coil
• For controlling single-phase motors, electric heaters, pumps, conveyors, material handling equipment and other applications.
• Features: 40 A Contact Rating, Motor load (hp) ratings, Durable open-frame construction, UL Listed, CSA Certified, CE Approved and RoHS Compliant.

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPST contact configuration with two normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 277 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
