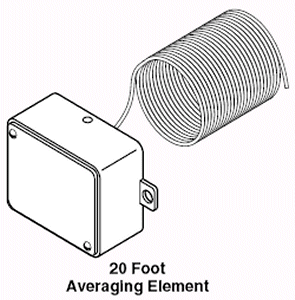

Pneunatic Temperature Transmitters - Duct, Range: 40 to 140 F, Averaging Element, 20 ft. long (6.1 m)

• Action: Direct, proportional.
• Adjustments: None required, factory calibrated. (Field accessible zero adjustment.)
• Supply air pressure: 20 psig ±0.5 psi (138 kPa ±3.4 kPa), clean, dry air, supplied through 1.0 scfh (0.0063" dia.) restrictor or restrictor-tee.
• Maximum air pressure: 30 psig (207 kPa).
• Output pressure: 3 to 15 psig (21 to 103 kPa).
• Air connection: 1/8 in. FNPT.
• Maximum case ambient temperature: 140°F (60°C).
• Minimum case operating ambient temperature: 40 °F (4.4 °C).
• Construction: Liquid-Filled copper sensing element, cast aluminum base, beryllium copper feedback bellows, zinc-plated steel cover.
