2252-250 | Pneunatic Temperature Transmitters - Duct/Immersion, Range: 0 to 100 F, Rigid Element, 1/4 x 9-3/8 in. long (6 x 238 mm) | Schneider Electric

Brand: Schneider ElectricSKU: 2252-250

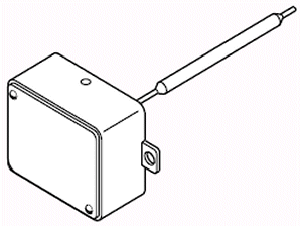

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 2252-250

Pneunatic Temperature Transmitters - Duct/Immersion, Range: 0 to 100 F, Rigid Element, 1/4 x 9-3/8 in. long (6 x 238 mm)

Pneunatic Temperature Transmitters - Duct/Immersion, Range: 0 to 100 F, Rigid Element, 1/4 x 9-3/8 in. long (6 x 238 mm)

Action: Direct, proportional.
Adjustments: None required, factory calibrated. (Field accessible zero adjustment.)
Supply air pressure: 20 psig ±0.5 psi (138 kPa ±3.4 kPa), clean, dry air, supplied through 1.0 scfh (0.0063" dia.) restrictor or restrictor-tee.
Maximum air pressure: 30 psig (207 kPa).
Output pressure: 3 to 15 psig (21 to 103 kPa).
Air connection: 1/8 in. FNPT.
Maximum case ambient temperature: 140°F (60°C).
Minimum case operating ambient temperature: 40 °F (4.4 °C).
Construction: Liquid-Filled copper sensing element, cast aluminum base, beryllium copper feedback bellows, zinc-plated steel cover.
