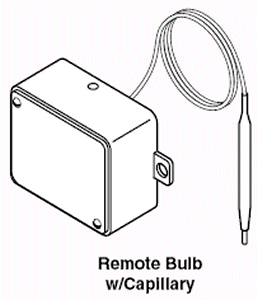

2252-151 | Pneunatic Temperature Transmitters - Duct/Outdoor Air, Range: -25 to 125 F, Remote Bulb, 1/4 x 4 in. long (6 x 102 mm) with 36 in. (0.91 m) capillary | Schneider Electric

Brand: Schneider ElectricSKU: 2252-151

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2252-151

Jump to: Overview & Specifications Reviews

Overview Details for 2252-151

Pneunatic Temperature Transmitters - Duct/Outdoor Air, Range: -25 to 125 F, Remote Bulb, 1/4 x 4 in. long (6 x 102 mm) with 36 in. (0.91 m) capillary

Pneunatic Temperature Transmitters - Duct/Outdoor Air, Range: -25 to 125 F, Remote Bulb, 1/4 x 4 in. long (6 x 102 mm) with 36 in. (0.91 m) capillary

Action: Direct, proportional.
Adjustments: None required, factory calibrated. (Field accessible zero adjustment.)
Supply air pressure: 20 psig ±0.5 psi (138 kPa ±3.4 kPa), clean, dry air, supplied through 1.0 scfh (0.0063" dia.) restrictor or restrictor-tee.
Maximum air pressure: 30 psig (207 kPa).
Output pressure: 3 to 15 psig (21 to 103 kPa).
Air connection: 1/8 in. FNPT.
Maximum case ambient temperature: 140°F (60°C).
Minimum case operating ambient temperature: 40 °F (4.4 °C).
Construction: Liquid-Filled copper sensing element, cast aluminum base, beryllium copper feedback bellows, zinc-plated steel cover.
