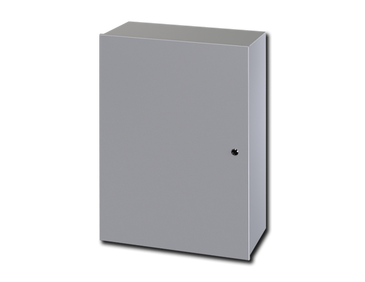

SCE-36N2406LP | NEMA1 | 36H x 24W x 6D | Subpanel: No | Knockouts: No | Keyed: No | Saginaw

SKU: SCE-36N2406LP Brand: Saginaw Condition: New Sale price Compare at $192.87

Regular price $159.12

Details

Saginaw part#: SCE-36N2406LP

Saginaw Part Number: SCE-36N2406LP

Manufacturer Product Page

Type: NEMA1
Height: 36 in
Width: 24 in
Depth: 6 in

Application -

Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection.


Construction -

  • 0.048”, 0.063” & 0.075” carbon steel depending on enclosure size.
  • Spot weld construction.
  • Standoffs provided for mounting optional panels.
  • Butt hinge.
  • Doors open 180 degrees.
  • Black quarter turn latches.
  • Latches are opened or closed with a screwdriver.
  • Ground stud on door.
  • Mounting holes in back of enclosure.
  • Subpanel mounting hardware.

  • Options -

    Tamper-resistant inserts available.
    Optional mounting straps available.


    Finish -

    ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.


    Industry Standards - (IS8)

    NEMA Type 1
    UL Listed Type 1
    CSA Type 1
    IEC IEC 60529 IP IP 30
