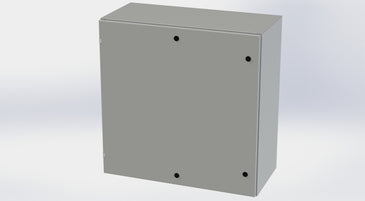

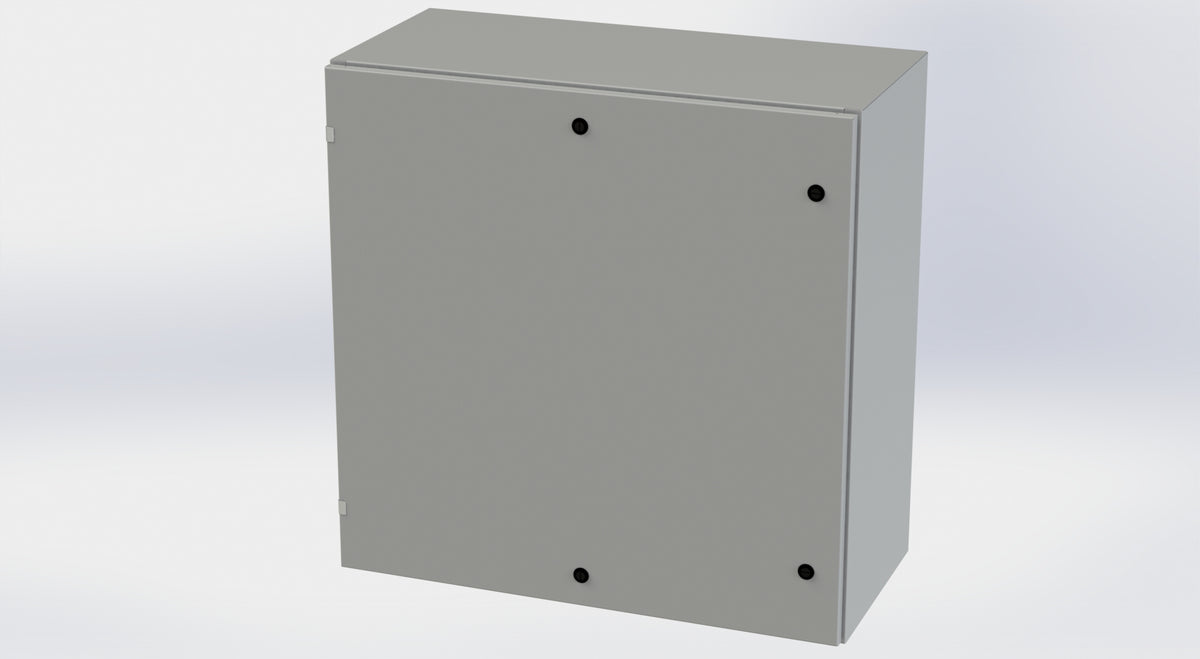

SCE-36EL3616LP | NEMA 4 / 12 / 13 | 36H x 36W x 16D | Subpanel: No | Knockouts: No | Keyed: No | Saginaw
Saginaw part#: SCE-36EL3616LP
Type: NEMA 4 / 12 / 13
Height: 36 in
Width: 36 in
Depth: 16 in
Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield is recommended.
- Optional tamper-resistant inserts are available.
- Optional mounting feet available.
- Door hardware available.
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Industry Standards - (IS2)
NEMA Type 4, 12 and Type 13
UL Listed Type 4 and 12
CSA Type 4 and 12
IEC IEC 60529 IP IP 66
Interchangeable latches and handles available in the accessory section.
