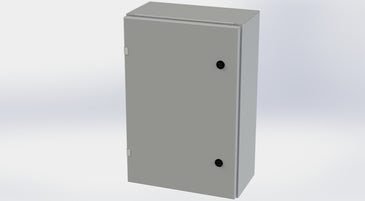

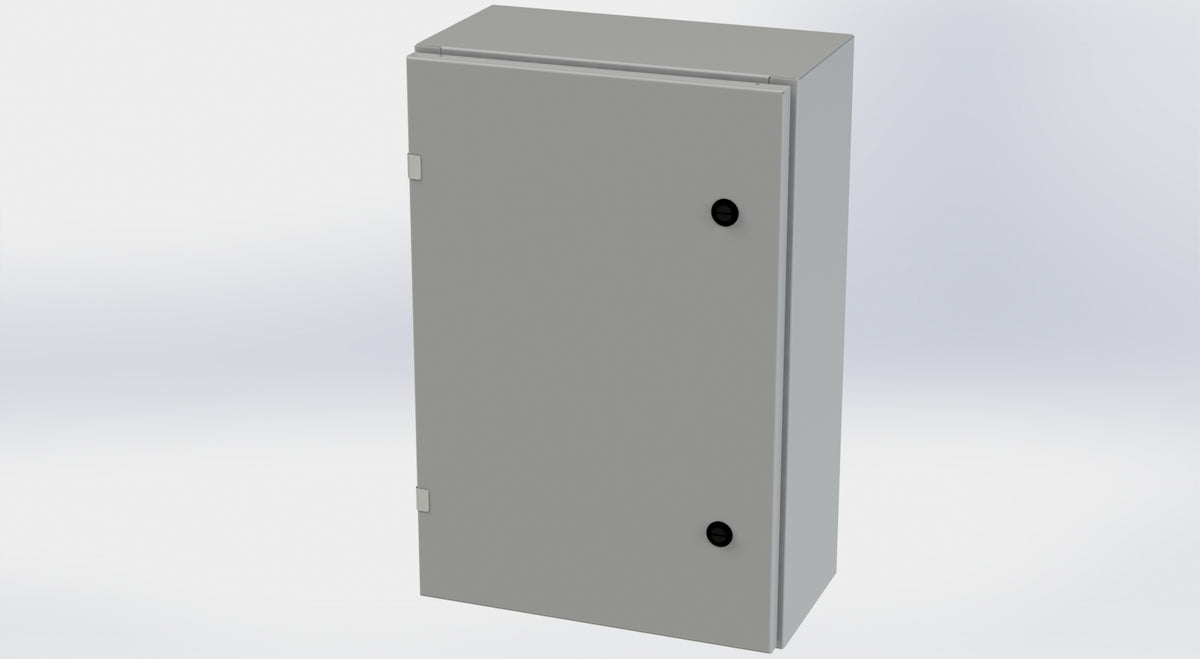

NEMA 4 / 12 / 13 | 24H x 16W x 8D | Saginaw | SCE-24EL1608LP | Subpanel: No | Knockouts: No | Keyed: No
Saginaw part#: SCE-24EL1608LPSaginaw Part Number: SCE-24EL1608LP
Type: NEMA 4 / 12 / 13
Height: 24 in
Width: 16 in
Depth: 8 in
Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield is recommended.
- Optional tamper-resistant inserts are available.
- Optional mounting feet available.
- Door hardware available.
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Industry Standards - (IS2)
NEMA Type 4, 12 and Type 13
UL Listed Type 4 and 12
CSA Type 4 and 12
IEC IEC 60529 IP IP 66
Interchangeable latches and handles available in the accessory section.
