NEMA 4 / 12 / 13 | 16H x 20W x 8D | Saginaw | SCE-16EL2008LP | Subpanel: No | Knockouts: No | Keyed: No

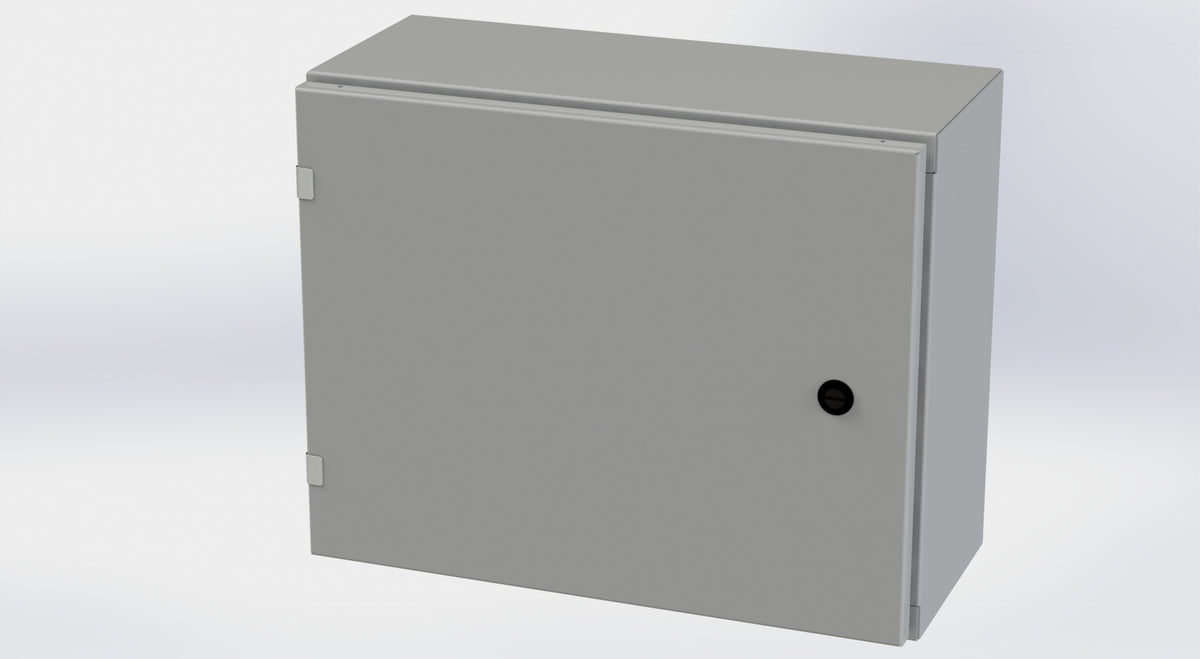

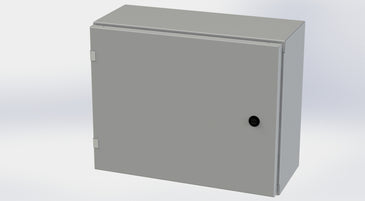

The photo is for representation purposes only and may not be a photo of product being purchased.
free shipping on orders over $999 excellent customer satisfaction secure online payment 5-star customer service
Blackhawk Supply Google Trusted Store Black Hawk Supply BBB Business Review

NEMA 4 / 12 / 13 | 16H x 20W x 8D | Saginaw | SCE-16EL2008LP | Subpanel: No | Knockouts: No | Keyed: No

SKU: SCE-16EL2008LP Brand: Saginaw Condition: New Sale price Compare at $237.42

Regular price $152.84

Details

Saginaw part#: SCE-16EL2008LP

Saginaw Part Number: SCE-16EL2008LP

Manufacturer Product Page

Type: NEMA 4 / 12 / 13
Height: 16 in
Width: 20 in
Depth: 8 in

Application -

Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield is recommended.


Construction -

  • 0.075” carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Oil-resistant gasket.
  • Collar studs provided for mounting optional panels.
  • Concealed hinge.
  • Removable and interchangeable doors.
  • Black quarter turn latches.
  • Latches are opened or closed with a screwdriver.
  • Mounting holes in back of enclosure.
  • Mounting hardware, sealing washer and hole plug included.
  • Removable print pocket.
  • Ground studs on door and body.

  • Options -

    - Optional tamper-resistant inserts are available.
    - Optional mounting feet available.
    - Door hardware available.


    Finish -

    ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.


    Industry Standards - (IS2)

    NEMA Type 4, 12 and Type 13
    UL Listed Type 4 and 12
    CSA Type 4 and 12
    IEC IEC 60529 IP IP 66


    Notes -

    Interchangeable latches and handles available in the accessory section.
