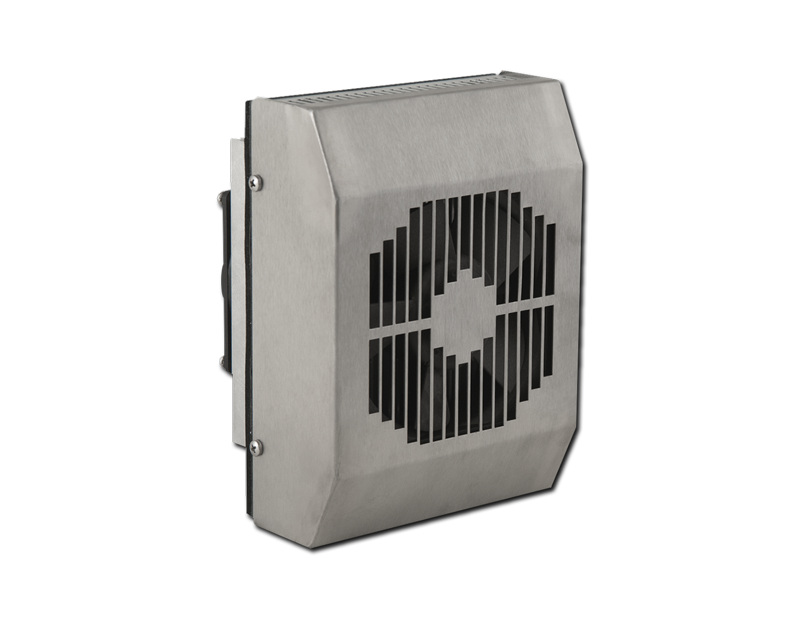

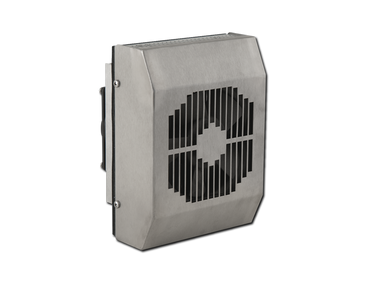

SCE-TE170B24VSS | NEMA IS20 | Thermoelectric Cooler 170 BTU/Hr. 24 VDC, 12H x 6W x 5D | Saginaw

Brand: SaginawSKU: SCE-TE170B24VSS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-TE170B24VSS

Jump to: Overview & Specifications Reviews

Overview Details for SCE-TE170B24VSS

Construction

Heavy gauge stainless steel.
DC Powered for 24V applications.
Mount vertically or horizontally.
Filterless design reduces maintenance requirements.
Contains no compressor or refrigerant, making it eco-friendly.
Pre-wired with simple terminal block for easy wiring connections.
Operates on the Peltier effect for cooling.
Terminal block connection.
Operating temperature range from -4°F to 149°F.

Application

Enviro-Therm® Thermoelectric Coolers also known as Peltier units. Designed with an internal closed loop system, Thermoelectric coolers have very few moving parts and no piping, leaving less room for failure. The compact design is great for small enclosures. For indoor and outdoor applications. Protects from dust, oil and water. Rugged, energy efficient, and reliable cooling system minimizing downtime.

Finish

#4 brushed finish type 304 Stainless Steel

Industry Standards - (IS20)

NEMA Type 3R, 4, 4X and 12
UL Recognized Type 3R, 4, 4X and 12
IEC 60529
IP 56

Notes

UL File # SA32278

Specifications

Item Number	SCE-TE170B24VSS
Brand	Saginaw
1 Enclosure Rating	IS20
Enclosure Depth (IN)	5
Enclosure Height (IN)	12
Enclosure Type	Thermoelectric Cooler 170 BTU/Hr. 24 VDC
Enclosure Width (IN)	6
