SCE-T201605LG | NEMA 3R, 12 | 2DR IMS Enclosure, 79H x 63W x 18D | Saginaw

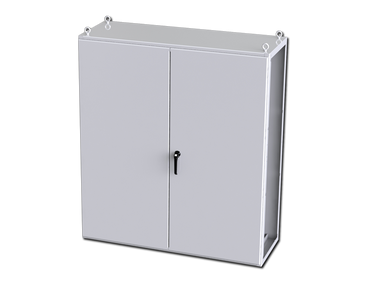

Saginaw | SCE-T201605LG

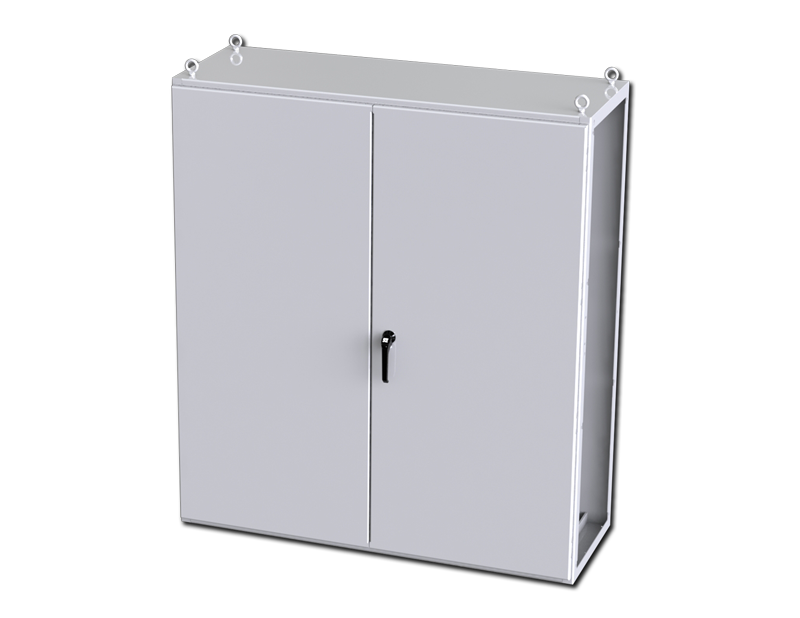

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-T201605LG

Overview

Details for SCE-T201605LG

NEMA 3R, 12 | 2DR IMS Enclosure, 79H x 63W x 18D

Construction

  • 0.104 In. carbon steel.
  • Seams continously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Heavy duty lifting eyes anchor into reinforced top.
  • Body stiffeners in large enclosures for extra rigidity.
  • Mounting holes provided in bottom of enclosure for installing plinth base or securing to the floor.
  • Concealed hinges.
  • Removable and inchangeable doors.
  • Black zinc die cast padlocking swing handle.
  • 3-point latching mechanism.
  • Large removable print pocket.
  • Mounting channels provided in top and bottom of enclosure.
  • Pour in place oil and water resistant gasket
  • Mechanical interlock provided on two door disconnect enclosures and all enclosures are provided with provisions for system expansion.
  • Ground stud on door and body.
  • Gland plate provided in bottom of enclosure.

Application

Can be bolted together in any desired multiple door arrangement.
Designed to house electrical equipment and provide protection from dust, dirt, water and oil. For outdoor application a drip shield and drain vent is recommended.

For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

Powder coated RAL 7035 gray inside and out.

Industry Standards - (IS3)

  • NEMA Type 3R, 12 and Type 13
  • UL Listed Type 3R and 12
  • CSA Type 3R and 12
  • IEC 60529
  • IP 55

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-T201605LG
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
Enclosure Depth (IN) 18
Enclosure Height (IN) 79
Enclosure Type 2DR IMS Enclosure
Enclosure Width (IN) 63
