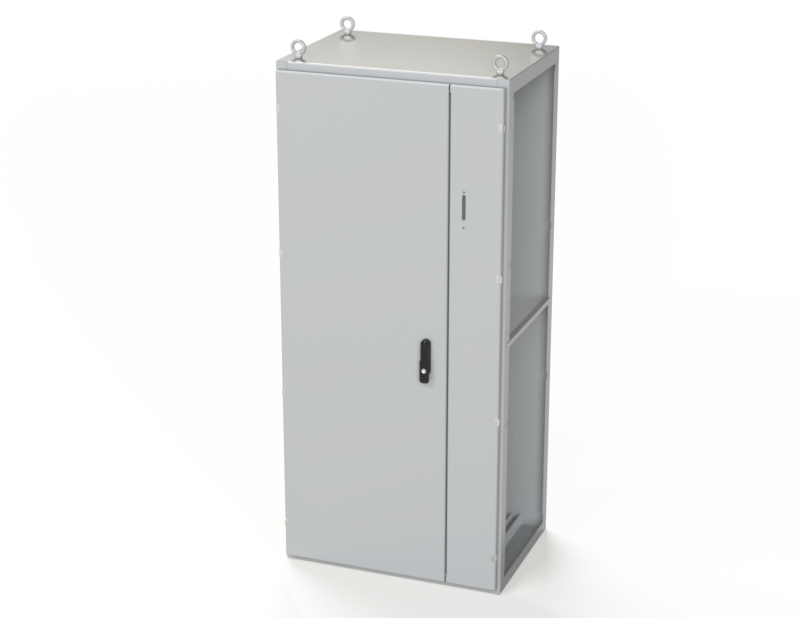

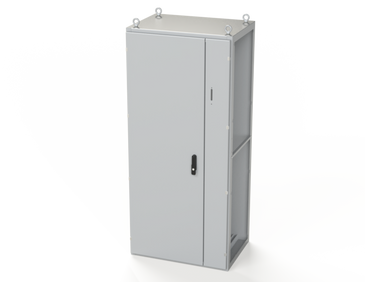

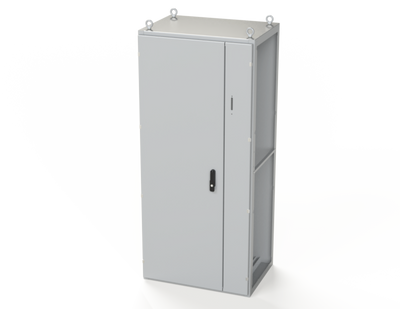

SCE-SD180806LG | NEMA 3R, 12 | 1DR IMS Disc. Enclosure, 71H x 32W x 22D | Saginaw

Construction

• 0.104 In. carbon steel.
• Seams continously welded and ground smooth.
• Flange trough collar around all sides of door opening
• Heavy duty lifting eyes anchor into reinforced top.
• Body stiffeners in large enclosures for extra rigidity.
• Mounting holes provided in bottom of enclosure for installing plinth base or securing to the floor.
• Concealed hinges.
• Removable and inchangeable doors.
• Black zinc die cast coinproof/padlocking swing handle.
• 3-point latching mechanism.
• Large removable print pocket on main door of disconnect enclosures.
• Mounting channels provided in top and bottom of enclosure.
• Pour in place oil and water resistant gasket
• Mechanical interlock provided on two door disconnect enclosures and all enclosures are provided with provisions for system expansion.
• Ground stud on door and body.
• Gland plate provided in bottom of enclosure.

Application

Finish

Industry Standards - (IS3)

• NEMA Type 3R, 12 and Type 13
• UL Listed Type 3R and 12
• CSA Type 3R and 12
• IEC 60529
• IP 55

Notes
