SCE-SAS59I | Stainless Steel Straight Tube | 59.06 (H) x 2.36 (W) x 2.36 (D) | Saginaw

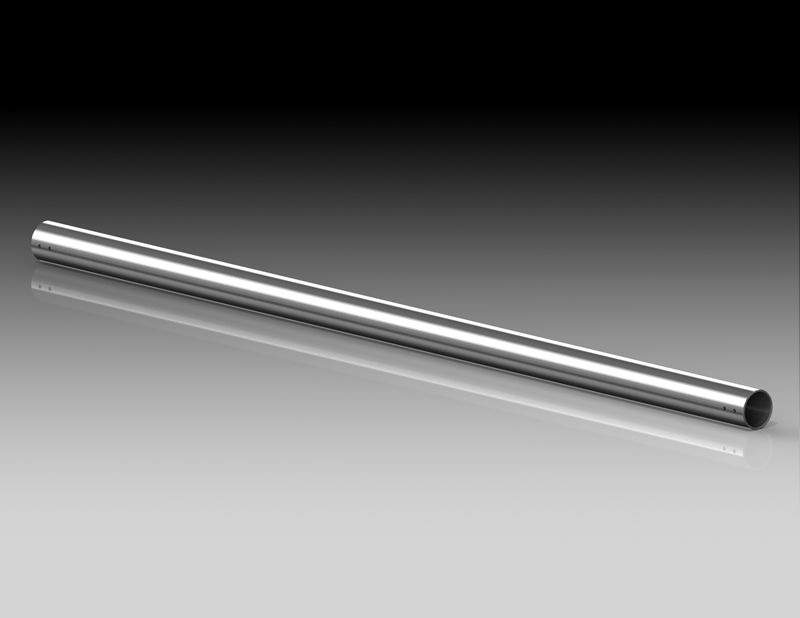

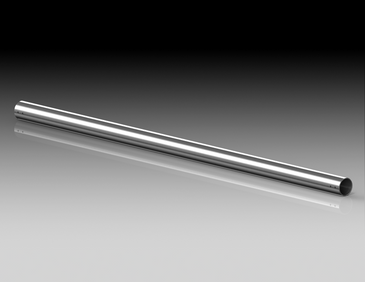

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-SAS59I

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-SAS59I Documents

FREIGHT DAMAGE POLICY CAD Package SAS Suspension System More Info

Overview

Details for SCE-SAS59I

Stainless Steel Straight Tube | 59.06 (H) x 2.36 (W) x 2.36 (D)

Construction

304 Stainless Steel couplings.
304 Stainless Steel tubes.
Rotating couplings have adjustable tensioner brakes to control movement while in use.
O-Ring Gaskets at all connections maintain oil and water tight seal.
Continuous closed tube - S, J and I shape designs.
Closed tube acts as conduit for feeding wiring.
Rigid, durable bearing in all rotating couplings withstand the stress of continuous use.
Removable access covers on all couplings with 90 degree turn.
Stainless Steel Hardware included for installation of coupling to tube.

Application

Designed for use with the SCE HMI enclosures, allows operators to easily ove or position an HMI to an ergonomic and comfortable working position. Heavy duty and reliable construction. Suspension Systems can be assembled in a multitude of configurations that allow for machine mount, wall mount, top mount, and floor mount options.

Finish

#4 brushed finish

Industry Standards - (IS17)

NEMA Not Applicable
UL Not Applicable
CSA N/A

Notes

*Suspension System parts cannot be custom painted
Nema 4X
