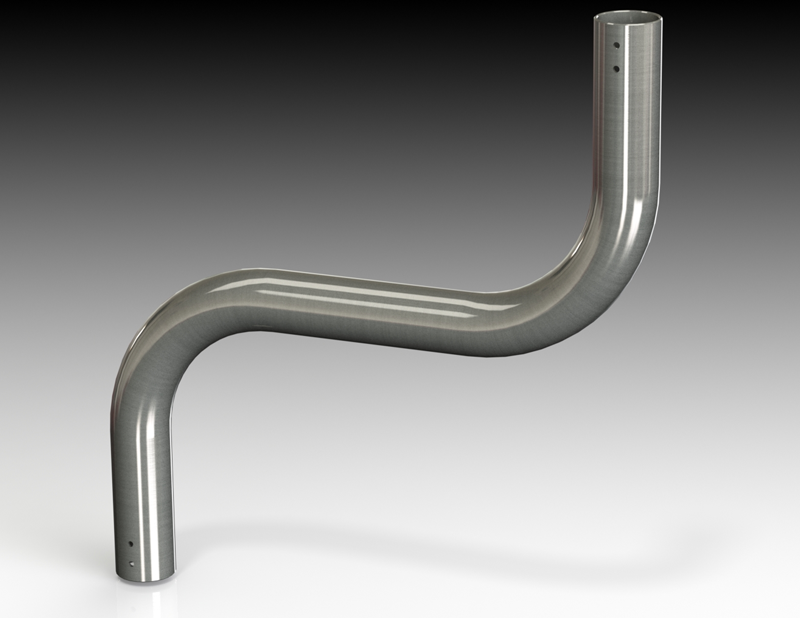

SCE-SAS20S | Stainless Steel S Profile Tube | 23.62 (H) x 19.68 (W) x 2.36 (D) | Saginaw

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-SAS20S

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-SAS20S Documents

FREIGHT DAMAGE POLICY CAD Package SAS Suspension System More Info

Overview

Details for SCE-SAS20S

Stainless Steel S Profile Tube | 23.62 (H) x 19.68 (W) x 2.36 (D)

Construction

304 Stainless Steel couplings.
304 Stainless Steel tubes.
Rotating couplings have adjustable tensioner brakes to control movement while in use.
O-Ring Gaskets at all connections maintain oil and water tight seal.
Continuous closed tube - S, J and I shape designs.
Closed tube acts as conduit for feeding wiring.
Rigid, durable bearing in all rotating couplings withstand the stress of continuous use.
Removable access covers on all couplings with 90 degree turn.
Stainless Steel Hardware included for installation of coupling to tube.

Application

Designed for use with the SCE HMI
enclosures, allows operators to
easily move or position an HMI to an
ergonomic and comfortable working
position. Heavy duty and reliable
construction. Suspension Systems
can be assembled in a multitude of
configurations that allow for machine
mount, wall mount, top mount, and
floor mount options.

Finish

#4 brushed finish

Industry Standards - (IS17)

NEMA Not Applicable
UL Not Applicable
CSA N/A

Notes

*Suspension System parts cannot be custom painted

Nema 4X
