SCE-SA79T | Open Tube Suspension Profile | 78.74 (H) x 2.56 (W) x 3.54 (D) | Saginaw

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-SA79T

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-SA79T Documents

FREIGHT DAMAGE POLICY CAD Package SA Suspension System Suspension System Counter Balance Configurations SCE-SAMM More Info

Overview

Details for SCE-SA79T

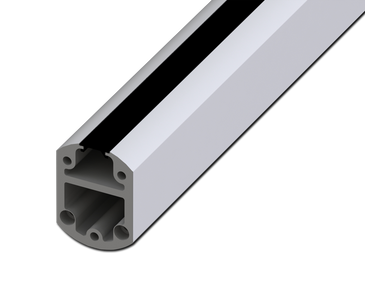

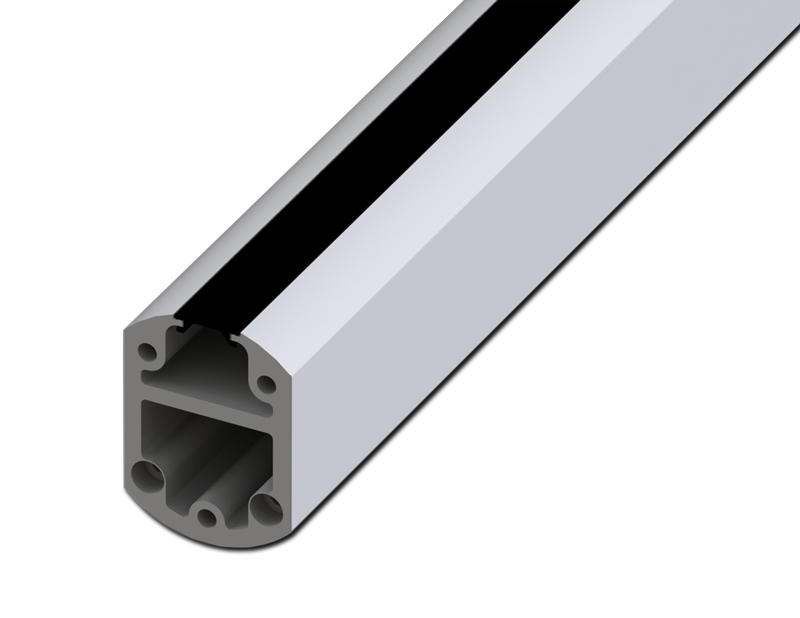

Open Tube Suspension Profile | 78.74 (H) x 2.56 (W) x 3.54 (D)

Construction

Cast aluminum couplings.
Extruded aluminum tubes (6060T66).
Rotating couplings have adjustable tensioner brakes to control movement while in use.
Rigid, durable bearing in all rotating couplings withstand the stress of continuous use.
Open or closed tube design.
Open tube allows for easy access to lay in wiring, with easy to install push fit rubber cover.
Closed tube acts as conduit for feeding wiring.
Removable access covers on all couplings with 90 degree turn.
Hardware and gasket included for installation of coupling to tube.

Application

Designed for use with the SCE HMI enclosures, allows operators to easily move or position an HMI to an ergonomic and comfortable working position. Made of heavy-duty, reliable construction. Suspension Systems can be assembled in a multitude of configurations that allow for machine mount, wall mount, top mount, and floor mount options.

Finish

RAL 7035 powder coated finish.

*Suspension System parts cannot be custom painted

Industry Standards - (IS17)

NEMA Not Applicable
UL Not Applicable
CSA N/A

Notes

*Suspension System parts cannot be custom painted
