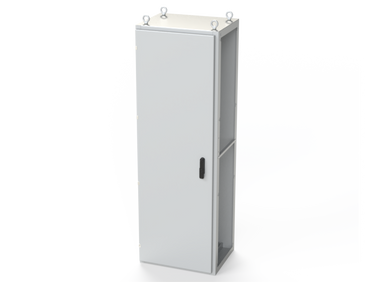

SCE-S180605LG | NEMA 3R, 12 | 1DR IMS Enclosure, 71H x 24W x 18D | Saginaw

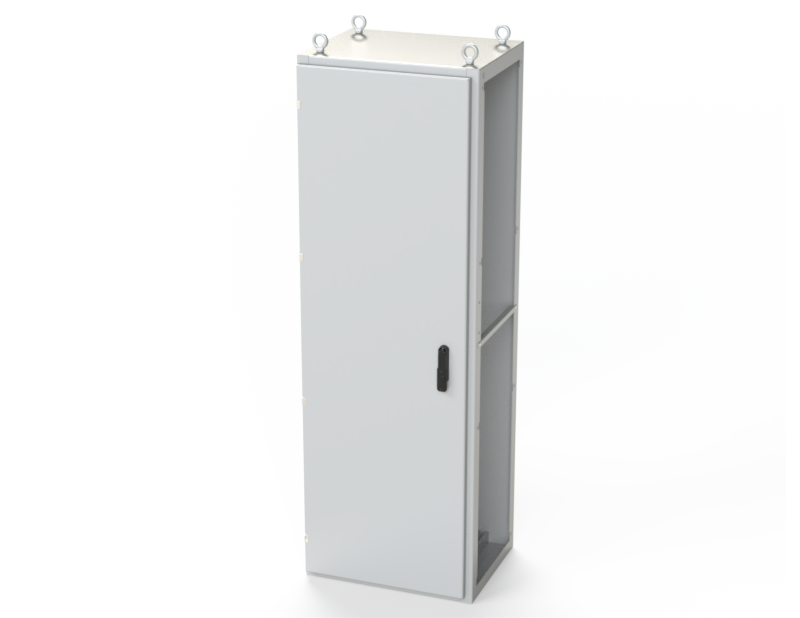

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-S180605LG
Overview Details for SCE-S180605LG
Construction
- 0.104 In. carbon steel.
- Seams continously welded and ground smooth.
- Flange trough collar around all sides of door opening
- Heavy duty lifting eyes anchor into reinforced top.
- Body stiffeners for extra rigidity.
- Mounting holes provided in bottom of enclosure for installing plinth base or securing to the floor.
- Concealed hinges.
- Removable and inchangeable doors.
- Black zinc die cast padlocking swing handle.
- 3-point latching mechanism.
- Large removable print pocket.
- Mounting channels provided in top and bottom of enclosure.
- Pour in place oil and water resistant gasket
- Mechanical interlock provided on two door disconnect enclosures and all enclosures are provided with provisions for system expansion.
- Ground stud on door and body.
- Gland plate provided in bottom of enclosure.
Application
Can be bolted together in any desired multiple door arrangement.
Designed to house electrical equipment and provide protection from dust, dirt, water and oil. For outdoor application a drip shield and drain vent is recommended.
For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
Powder coated RAL 7035 gray inside and out.
Industry Standards - (IS3)
- NEMA Type 3R, 12 and Type 13
- UL Listed Type 3R and 12
- CSA Type 3R and 12
- IEC 60529
- IP 55
Notes
Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
Specifications
| Item Number | SCE-S180605LG |
| Brand | Saginaw |
| 1 Enclosure Rating | NEMA 12 |
| 1 Enclosure Rating | NEMA 3R |
| Enclosure Depth (IN) | 18 |
| Enclosure Height (IN) | 71 |
| Enclosure Type | 1DR IMS Enclosure |
| Enclosure Width (IN) | 24 |
Reviews
Parts & Accessories for SCE-S180605LG
SCE-VMG18 | NEMA N/A | Grid, IMS Vertical Mtg. (Galvanneal), 67H x 3W x 1D | Saginaw$79.05
Brand: Saginaw
SKU: SCE-VMG18
SCE-URA18 | NEMA N/A | Angle, U-Shaped Rack, 67H x 2W x 2D | Saginaw$107.41
Brand: Saginaw
SKU: SCE-URA18
SCE-TEMG | NEMA N/A | Grid, Top End Mounting, 5H x 3W x 2D | Saginaw$23.74
Brand: Saginaw
SKU: SCE-TEMG
SCE-SPMP05 | NEMA N/A | Strap, IMS Subpanel Mtg. (Galvanneal), 2H x 18W x 2D | Saginaw$27.99
Brand: Saginaw
SKU: SCE-SPMP05
SCE-SP1806G | NEMA N/A | Subpanel, IMS Bent Galvanized, 66H x 20W x 3D | Saginaw$245.43
Brand: Saginaw
SKU: SCE-SP1806G
SCE-SGP08 | NEMA N/A | IMS SLIDING GLAND PLATE, 10H x 11W x 1D | Saginaw$105.26
Brand: Saginaw
SKU: SCE-SGP08
SCE-SDMI | NEMA N/A | Kit, IMS Slave Door Mech. Interlock, 42H x 1W x 1D | Saginaw$73.25
Brand: Saginaw
SKU: SCE-SDMI
SCE-P010605 | NEMA N/A | Base, IMS Plinth (Bolt Together), 4H x 24W x 18D | Saginaw$162.25
Brand: Saginaw
SKU: SCE-P010605
SCE-MDMI | NEMA N/A | Kit, IMS Main Door Mech. Interlock, 42H x 3W x 2D | Saginaw$146.50
Brand: Saginaw
SKU: SCE-MDMI
SCE-LRA18 | NEMA N/A | Angle, L-Shaped Rack, 67H x 2W x 2D | Saginaw$107.41
Brand: Saginaw
SKU: SCE-LRA18
SCE-LF18NO | NEMA IS24 | Fixture, LED Light w/o Outlet, 3H x 18W x 4D | Saginaw$225.98
Brand: Saginaw
SKU: SCE-LF18NO
SCE-LF18 | NEMA IS24 | Fixture, LED Light, 3H x 18W x 4D | Saginaw$251.08
Brand: Saginaw
SKU: SCE-LF18
SCE-GMA | NEMA N/A | Angle, IMS Grid Mounting, 3H x 1W x 1D | Saginaw$19.70
Brand: Saginaw
SKU: SCE-GMA
SCE-FS2424 | NEMA N/A | Shelf, Folding, 24H x 24W x 2D | Saginaw$258.36
Brand: Saginaw
SKU: SCE-FS2424
SCE-FS1818 | NEMA N/A | Shelf, Folding, 18H x 18W x 2D | Saginaw$214.83
Brand: Saginaw
SKU: SCE-FS1818
SCE-FS1212 | NEMA N/A | Shelf, Folding, 12H x 12W x 2D | Saginaw$171.28
Brand: Saginaw
SKU: SCE-FS1212
SCE-FP18G | NEMA N/A | Plate, IMS Filler (Galvanized), 66H x 4W x 1D | Saginaw$94.55
Brand: Saginaw
SKU: SCE-FP18G
SCE-FMG06 | NEMA N/A | Grid, IMS Filler Mtg. (Galvanneal), 17H x 3W x 2D | Saginaw$32.66
Brand: Saginaw
SKU: SCE-FMG06
