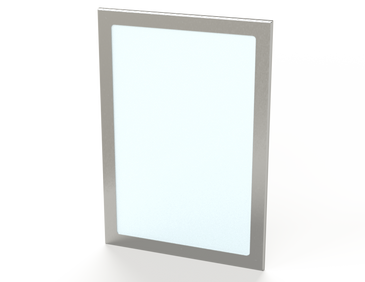

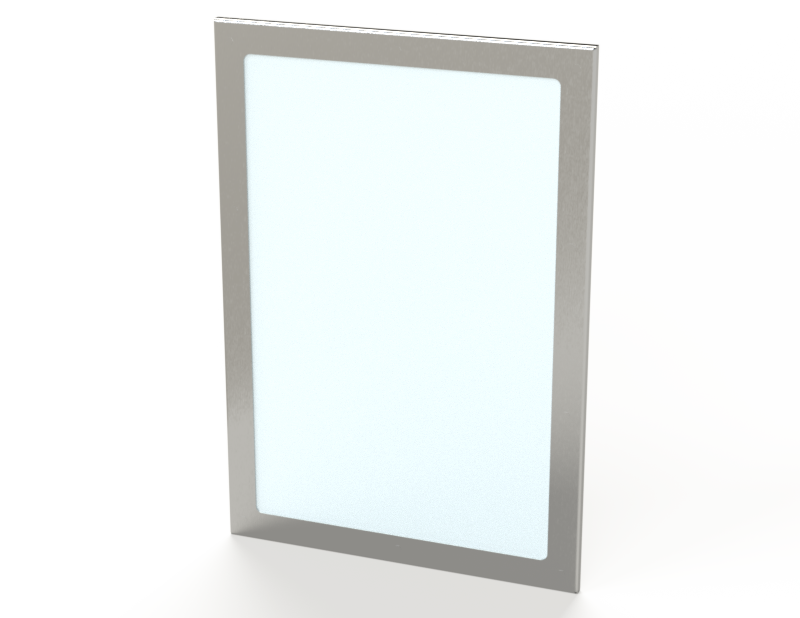

SCE-PWK1711NFSS | NEMA IS24 | Kit, S.S. Window, 20H x 14W x 0D | Saginaw

Brand: SaginawSKU: SCE-PWK1711NFSS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-PWK1711NFSS

Jump to: Overview & Specifications Reviews

Overview Details for SCE-PWK1711NFSS

Application

Designed for use on most SCE Type 1, 3R, 4, 4x, and 12 enclosures. Consist of frame, window, oil-resistant gasketing and mounting hardware. Installed by making a cutout in the enclosure and fastening the window and frame in place. The window is 0.25" UV stable polycarbonate material.
Carbon steel kit powder coated ANSI-61 gray urethane polyester.
Stainless steel kits are made of Type 304 stainless with #4 brushed finish. To maintain a 4x rating, SS must be used.

Industry Standards - (IS24)

UL Component Recognized

Notes

Nema Type 1, 3R, 4, 4X and 12

UL Recognized Type 1, 3R and 12
UL File # E69392

Recommend use as Type 3R rating in full outdoor exposure and extreme weather environments.

For more details see Design Considerations When Specifying Your Enclosure on our website.

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

IEC 60529 IP 66
