Documents: SCE-PMK17
SCE-PMK17 | Pole Mount Kit | Saginaw
Overview Details for SCE-PMK17
Application

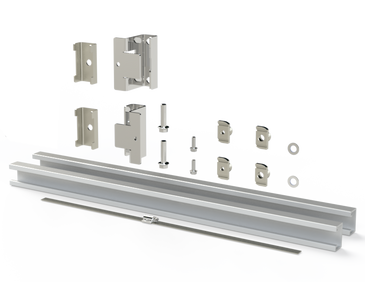

Pole Mount kit designed to easily adapt to most wall mount enclosure type such as the Environline Enclosures with mounting holes through the back and HLP type with External mounting ears. Mount to various pole sizes and shapes. Attach mounting channel bar to the back of the enclosure using the provided mounting hardware then wrap the stainless steel strap around the pole and through the bar to attach the enclosure to the pole. Includes two high strength extruded aluminum mounting channels that make for easy length modifications, two straps suitable for 3-in. to 16-in. diameter pole and mounting hardware.
SCE-PMHK Pole Mount Hanger - Used to simplify hanging larger weight enclosures and increase load strength. May be used with or without straps.
Finish
Pole Mount Kit - extruded aluminum channels, zinc plated mounting hardware, stainless steel straps.
Pole Mount Hanger - zinc plated
Industry Standards - (IS17)
- NEMA Not Applicable
- UL Not Applicable
- CSA N/A
Specifications
Item Number | SCE-PMK17 |
Brand | Saginaw |
