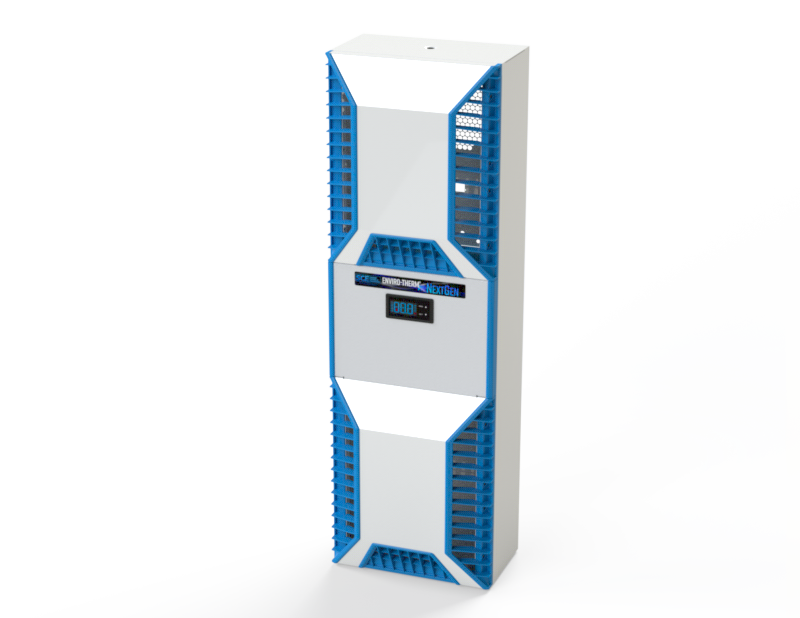

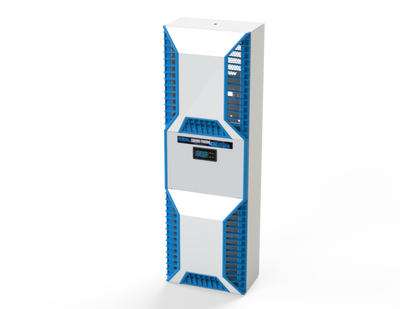

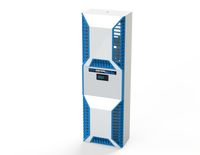

SCE-NG4095B230V | Conditioner, NG Air - 4095 BTU/Hr. 230 Volt | 37.4 (H) x 12 (W) x 8.26 (D) | Saginaw

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-NG4095B230V

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-NG4095B230V Documents

FREIGHT DAMAGE POLICY CAD Package NextGen AC - SCE-NG4095B120V NextGen AC - SCE-NG4095B230V NextGen AC - SCE-NG4095B460V3 NextGen AC Technical Modbus Table SCE-ETHCK Software Setup Controller Intro and Setup More Info

Overview

Details for SCE-NG4095B230V

Conditioner, NG Air - 4095 BTU/Hr. 230 Volt | 37.4 (H) x 12 (W) x 8.26 (D)

Construction

Closed loop cooling system
Hermetically sealed rotary compressor
Internal components are corrosion resistant
Built in ModBus communication RS485 serial
Active condensate system
Coils are designed as filterless units, fin spacing and hydrophobic Nano coating to help reduce chance of clogging when used filterless
Washable, reusable aluminum mesh filters included
Screw fastened filter cover
R134a refrigerant - chlorine-free and harmless to the environment
Easy handling removable lifting strap
Mounting flange hangers for easy installation, included
Digital touchpad programmable controller, viewable from outside the enclosure
Controller preset 95°F to cool adjustable 68°F to 122°F
Temperature differential hysteresis 5.4°F
High temp alarm preset 131°F
High performance ball bearing fans
Door activated switch wiring provisions provided for easy installation

Application

NextGen Enviro-Therm Air Conditioners are designed with an internal closed loop system to provide protection from dust, oil and water. For use in most industrial area or application where low ambient temperature is not a concern, both indoor and outdoor. Rugged, energy efficient and reliable cooling system.Installation may be Surface or Recessed Mounted

Finish

Powder coated steel Cover RAL 7035 River Texture over Aluzinc coated steel

Industry Standards - (IS19)

NEMA Type 3R, 4 and 12
UL Recognized Type 3R, 4 and 12
IEC 60529
IP 56

Notes

For use in applications were low ambient is not a concern. Extended ambient temperature range +40°F to 140°F (Unit does not have Low ambient compressor heater)
