SCE-L9N366LP | Nema-1 Enclosure | Saginaw

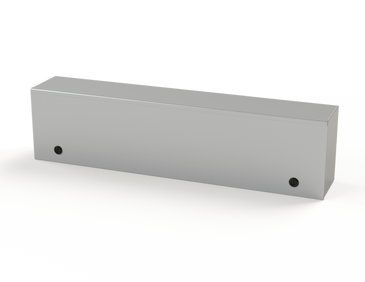

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-L9N366LP
Documents and manuals
Saginaw SCE-L9N366LP Documents
Overview
Details for SCE-L9N366LP
Nema-1 Enclosure
Construction
- 0.048 and 0.060 carbon steel depending on its size.
- Spot weld construction
- 10-32 Standoffs provided for mounting optional sub-panels
- Removable Cover
- Black quarter turn latches
- Latches are opened or closed with a screwdriver
- Ground stud on door and body
- Mounting holes in back of enclosure
- Sub-panel mounting hardware included
Application
Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection. For installation information, consult our Installation Manual at www.saginawcontrol.com
Finish
ANSI-61 gray powder coated inside and out.
Optional sub-panels powder coated white.
Industry Standards - (IS8)
- NEMA Type 1
- UL Listed Type 1
- CSA Type 1
- IEC 60529
- IP 30
Specifications
Item Number | SCE-L9N366LP |
Brand | Saginaw |
Enclosure Depth (IN) | 6 |
Enclosure Height (IN) | 9 |
Enclosure Rating | NEMA 1 |
Enclosure Width (IN) | 36 |
