Documents: SCE-L9N306LP

FREIGHT DAMAGE POLICY CAD Package Service Prts NEMA 1 Enclosures General Purpose Type 1 Enclosures 123581 Grounding Kit More Info

SCE-L9N306LP | Nema-1 Enclosure | Saginaw

Brand: SaginawSKU: SCE-L9N306LP

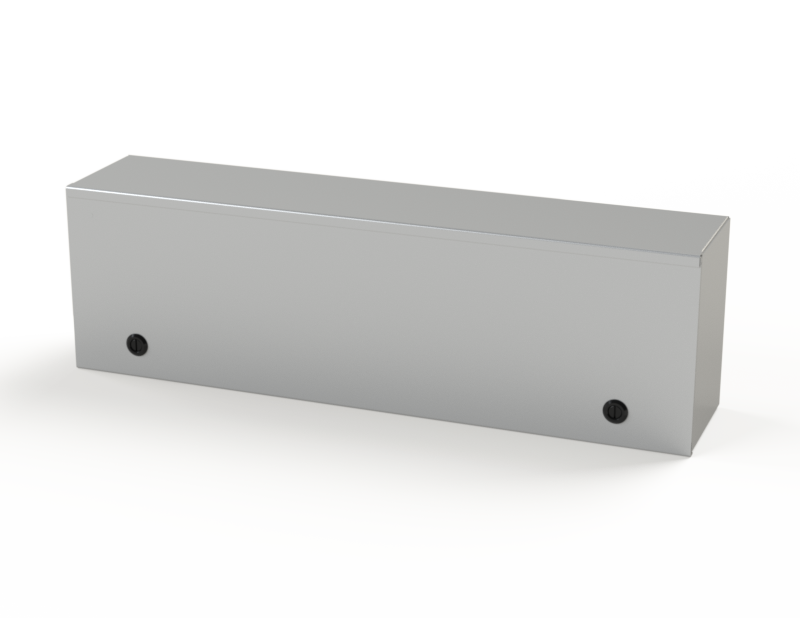

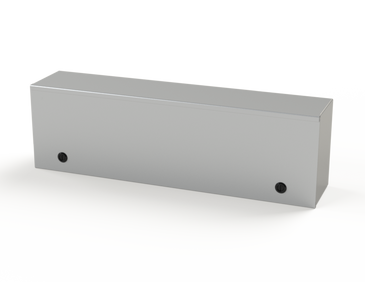

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-L9N306LP

Jump to: Overview & Specifications Reviews

Overview Details for SCE-L9N306LP

Construction

0.048 and 0.060 carbon steel depending on its size.
Spot weld construction
10-32 Standoffs provided for mounting optional sub-panels
Removable Cover
Black quarter turn latches
Latches are opened or closed with a screwdriver
Ground stud on door and body
Mounting holes in back of enclosure
Sub-panel mounting hardware included

Application

Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection. For installation information, consult our Installation Manual at www.saginawcontrol.com

Finish

ANSI-61 gray powder coated inside and out.
Optional sub-panels powder coated white.

Industry Standards - (IS8)

NEMA Type 1
UL Listed Type 1
CSA Type 1
IEC 60529
IP 30

Specifications

Item Number	SCE-L9N306LP
Brand	Saginaw
Enclosure Depth (IN)	6
Enclosure Height (IN)	9
Enclosure Rating	NEMA 1
Enclosure Width (IN)	30
