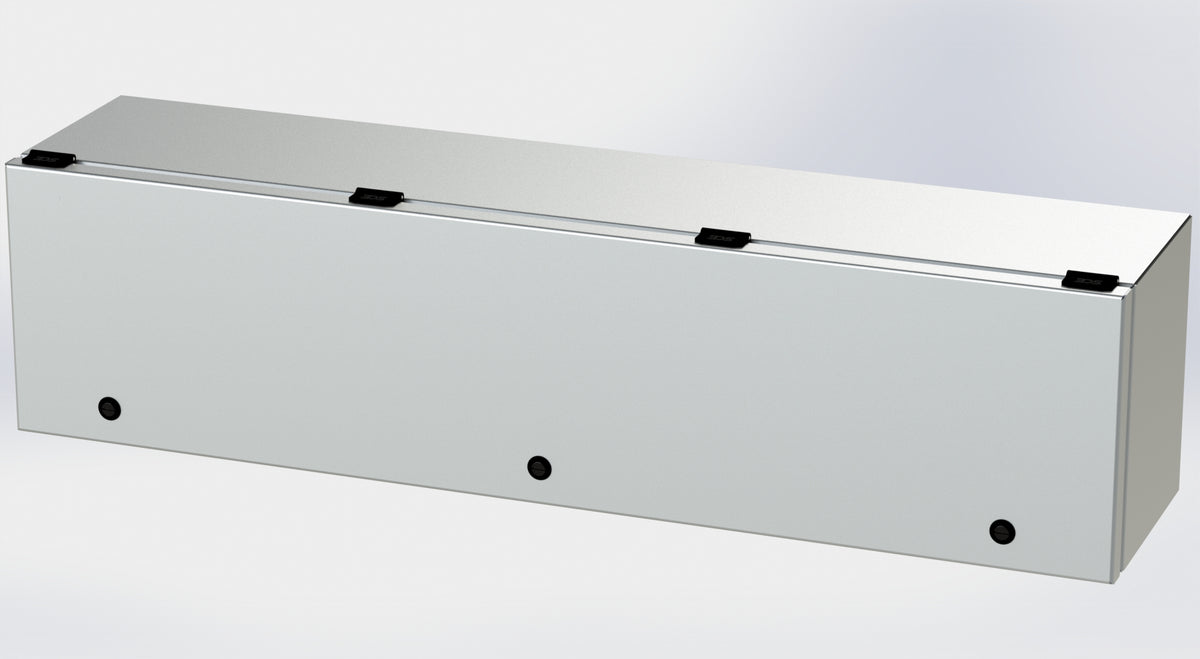

SCE-L9368ELJSS | NEMA 3R, 12, 4, 4X | S.S. ELJ Trough Enclosure, 9H x 36W x 8D | Saginaw

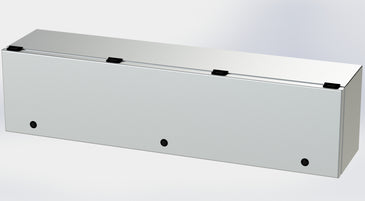

Saginaw | SCE-L9368ELJSS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-L9368ELJSS

Documents and manuals

Overview

Details for SCE-L9368ELJSS

NEMA 3R, 12, 4, 4X | S.S. ELJ Trough Enclosure, 9H x 36W x 8D

Construction

  • 0.063 In. stainless steel Type 304.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Pour in place oil and water resistant gasket
  • 10-32 Standoffs provided for mounting optional panels.
  • Removable hinges.
  • Doors open 180 degrees.
  • Black mini quarter turn latches.
  • Latches are opened or closed with a screwdriver.
  • Sealing washers and hole plugs included.
  • Ground stud on door and body.
  • Mounting feet included.
  • Padlocking or keylocking latches, and tamper-resistant hardware is available.

Application

Designed to house electrical controls, instruments and components used in an indoor or outdoor environment to provide a degree of protection for the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water (rain, sleet, snow). For outdoor application a drip shield and drain vent is recommended.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)

  • NEMA Type 3R, 4, 4X, 12 and Type 13
  • UL Listed Type 3R, 4, 4X and 12
  • CSA Type 4, 4X and 12
  • IEC 60529
  • IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number SCE-L9368ELJSS
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
1 Enclosure Rating NEMA 4
1 Enclosure Rating NEMA 4X
Enclosure Depth (IN) 8
Enclosure Height (IN) 9
Enclosure Type S.S. ELJ Trough Enclosure
Enclosure Width (IN) 36
