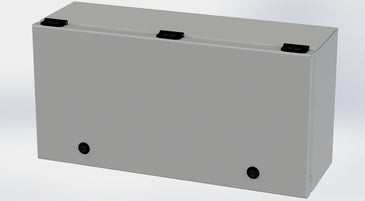

SCE-L9186ELJ | NEMA 3R, 12, 4 | ELJ Trough Enclosure, 9H x 18W x 6D | Saginaw

Brand: SaginawSKU: SCE-L9186ELJ

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-L9186ELJ

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-L9186ELJ

Construction

0.063 In. carbon steel.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Pour in place oil and water resistant gasket
10-32 Standoffs provided for mounting optional panels.
Removable hinges.
Doors open 180 degrees.
Black mini quarter turn latches.
Latches are opened or closed with a screwdriver.
Sealing washers and hole plugs included.
Ground stud on door and body.
Mounting holes in back of enclosure.
Mounting feet included.
Padlocking or keylocking latches, and tamper-resistant hardware is available.

Application

Designed to house electrical controls, instruments and components used in an indoor or outdoor environment to provide a degree of protection for the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water (rain, sleet, snow). For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

Ansi -61 gray powder coating inside and out.

Industry Standards - (IS4)

NEMA Type 3R, 4, 12 and Type 13
UL Listed Type 3R, 4 and 12
CSA Type 3R, 4 and 12
IEC 60529
IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-L9186ELJ
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
Enclosure Depth (IN)	6
Enclosure Height (IN)	9
Enclosure Type	ELJ Trough Enclosure
Enclosure Width (IN)	18
