SCE-L9126ELJWSS | NEMA 3R, 12, 4, 4X | S.S. ELJ Trough Window Enclosure, 9H x 12W x 6D | Saginaw

Brand: SaginawSKU: SCE-L9126ELJWSS

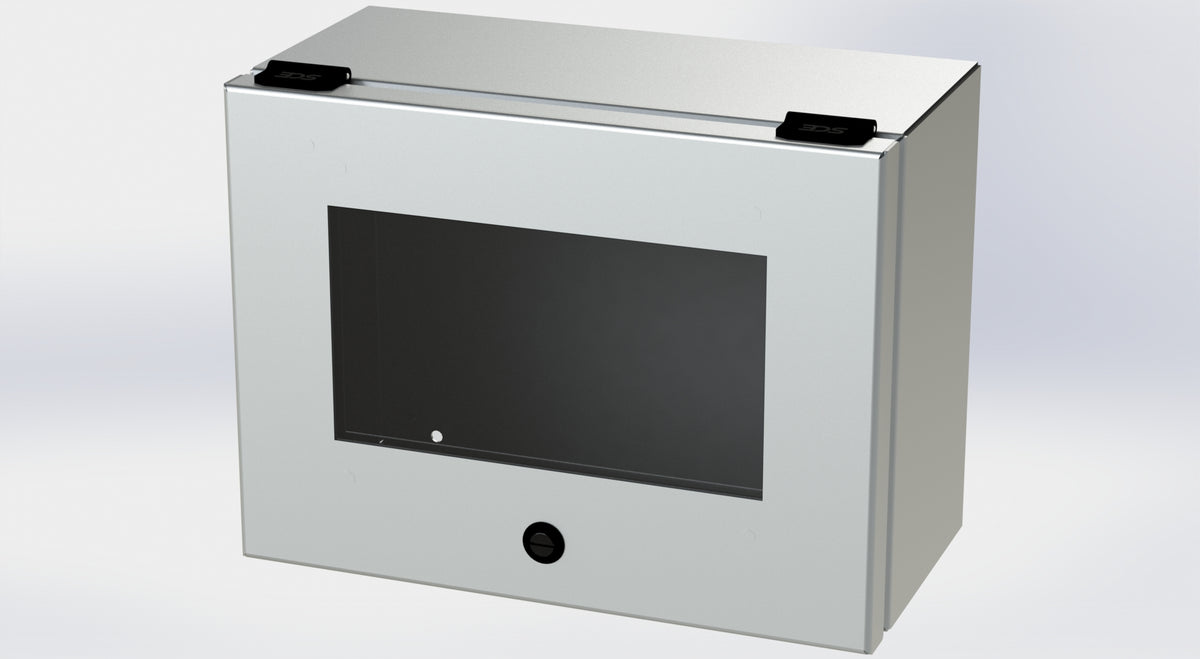

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-L9126ELJWSS

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-L9126ELJWSS

Construction

0.063 In. stainless steel Type 304.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
Pour in place oil and water resistant gasket
10-32 Standoffs provided for mounting optional panels.
Removable hinges.
Doors open 180 degrees.
Black mini quarter turn latches.
Latches are opened or closed with a screwdriver.
Sealing washers and hole plugs included.
Ground stud on door and body.
Mounting holes in back of enclosure.
Mounting feet included.
Padlocking or keylocking latches, and tamper-resistant hardware is available.

Application

Designed to house electrical controls, instruments and components used in an indoor or outdoor environment to provide a degree of protection for the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water (rain, sleet, snow). For outdoor application a drip shield and drain vent is recommended.

For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

#4 brushed finish on all exterior surfaces. Optional sub-panels are powder coated white.

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

Recommend use as Type 3R rating in full outdoor exposure and extreme weather environments.

For more details see Design Considerations When Specifying Your Enclosure on our website.

Specifications

Item Number	SCE-L9126ELJWSS
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
1 Enclosure Rating	NEMA 4X
Enclosure Depth (IN)	6
Enclosure Height (IN)	9
Enclosure Type	S.S. ELJ Trough Window Enclosure
Enclosure Width (IN)	12
