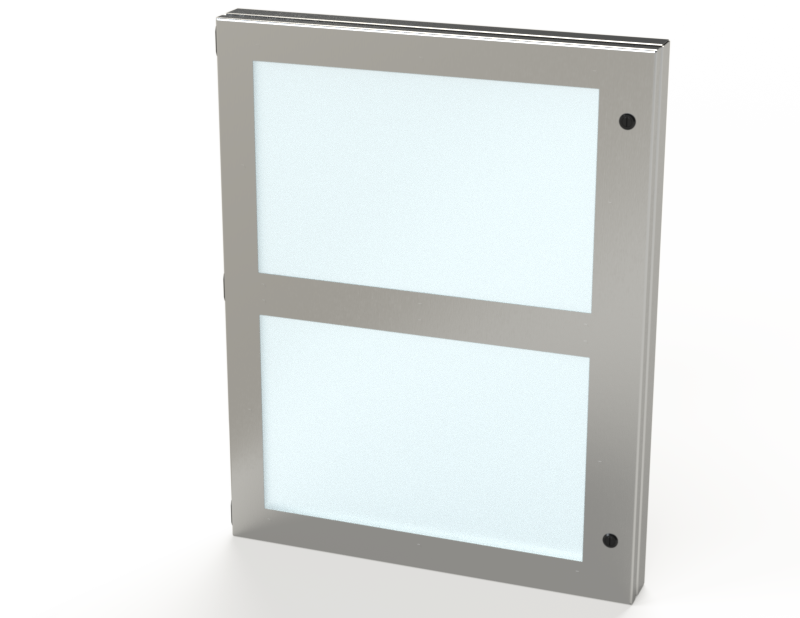

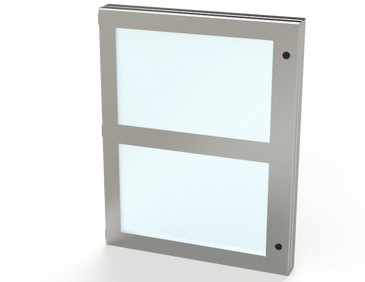

SCE-HWK2822SS | NEMA 3R, 12 | Kit, S.S. Hinged Window, 28H x 22W x 2D | Saginaw

Brand: SaginawSKU: SCE-HWK2822SS
Saginaw | SCE-HWK2822SS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SCE-HWK2822SS

Overview Details for SCE-HWK2822SS

Application

Designed to mount on the exterior of an enclosure to provide protection for controls with easy access. ELJ hinges. Black mini quarter turn latches. UV stable polycarbonate viewing window. Gasket and hardware included. For outdoor application a drip shield and drain vent is recommended.

For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

Stainless Steel Type 304 with #4 brushed finish.

Industry Standards - (IS3)

  • NEMA Type 3R, 12 and Type 13
  • UL Listed Type 3R and 12
  • CSA Type 3R and 12
  • IEC 60529
  • IP 55

Notes

Recommend use as Type 3R rating if used in full outdoor exposure and extreme weather environments - the addition of ventilation is necessary to handle the large negative pressure differential caused in a tightly sealed enclosure in extreme weather conditions.
Temperatures that may exceed 140 degree F, such as outdoor in direct sunlight should be evaluated, shading or sun shield may be necessary.

For more details see Design Considerations When Specifying Your Enclosure on our website.

UL File #E69392

Specifications

Item Number SCE-HWK2822SS
Brand Saginaw
1 Enclosure Rating NEMA 12
1 Enclosure Rating NEMA 3R
Enclosure Depth (IN) 2
Enclosure Height (IN) 28
Enclosure Type Kit
Enclosure Width (IN) 22
