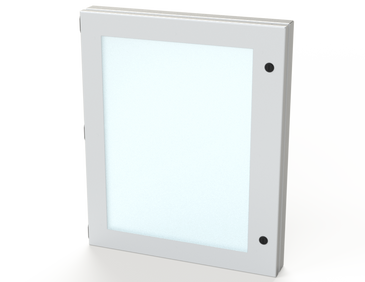

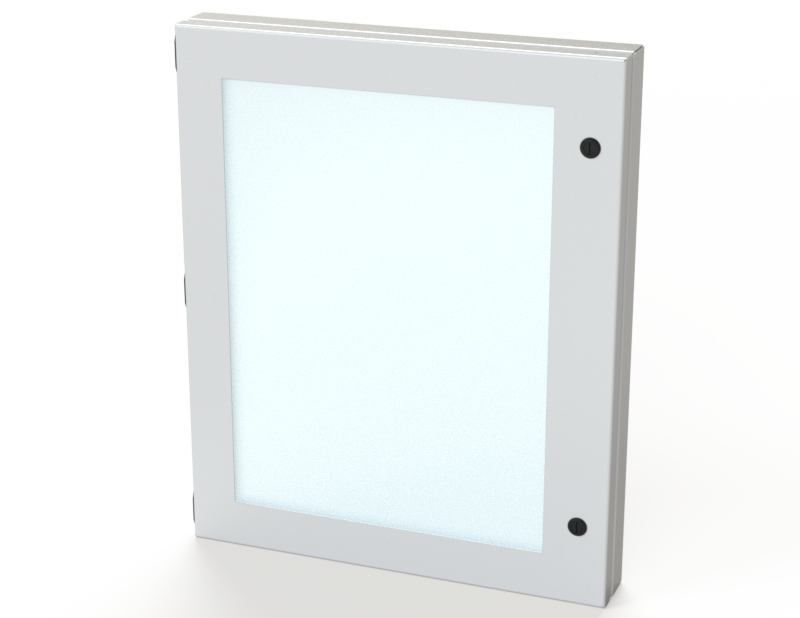

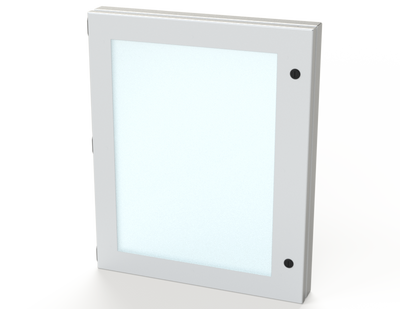

SCE-HWK2218LG | Kit, Hinged Window | 22 (H) x 18 (W) x 1.5 (D) | Saginaw
Documents and manuals
Saginaw SCE-HWK2218LG Documents
Overview
Details for SCE-HWK2218LG
Kit, Hinged Window | 22 (H) x 18 (W) x 1.5 (D)
Application
Designed to mount on the exterior of an enclosure to provide protection for controls with easy access. ELJ hinges. Black mini quarter turn latches. UV stable polycarbinate viewing window. Gasket and hardware included. For outdoor application a drip shield and drain vent is recommended.
For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Finish
RAL 7035 gray powder coat.
Industry Standards - (IS3)
- NEMA Type 3R, 12 and Type 13
- UL Listed Type 3R and 12
- CSA Type 3R and 12
- IEC 60529
- IP 55
Notes
Recommend use as Type 3R rating in full outdoor exposure and extreme weather environments - the addition of ventilation is necessary to handle the large negative pressure differential caused in a tightly sealed enclosure in extreme weather conditions.
Temperatures that may exceed 140 degree F, such as outdoor in direct sunlight should be evaluated, shading or sun shield may be necessary
For more details see Design Considerations When Specifying Your Enclosure on our website.
UL File #E69392
Specifications
| Item Number | SCE-HWK2218LG |
| Brand | Saginaw |
| Accessory | Kit; Hinged Window |
| Depth (IN) | 1.5 |
| Height (IN) | 22 |
| UL Rating | 3R |
| Width (IN) | 18 |
