Documents: SCE-HWK1014SS

FREIGHT DAMAGE POLICY CAD Package Large Hinged Window Kit ELJ Hinged Window Kit More Info

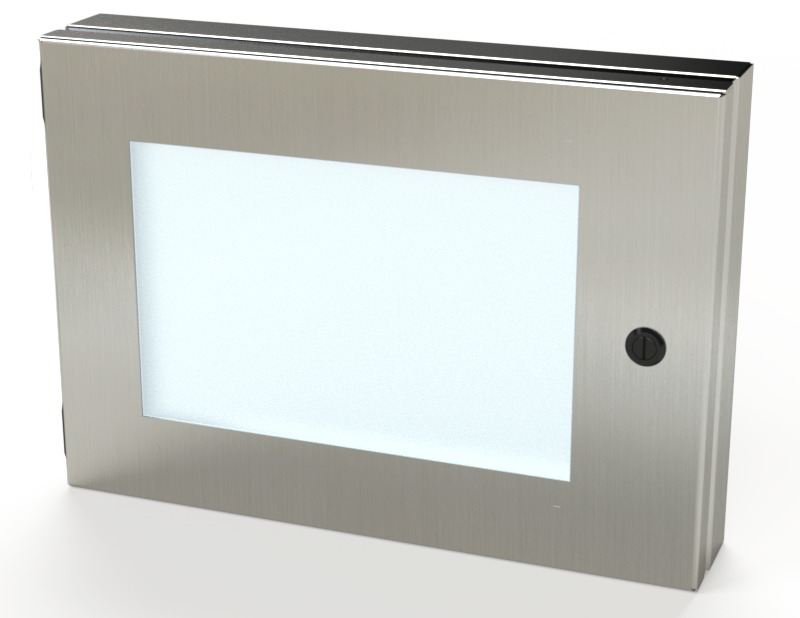

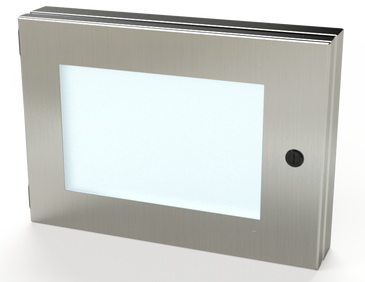

SCE-HWK1014SS | Kit, S.S. Hinged Window | Saginaw

Brand: SaginawSKU: SCE-HWK1014SS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-HWK1014SS

Jump to: Overview & Specifications Reviews

Overview Details for SCE-HWK1014SS

Application

Designed to mount on the exterior of an enclosure to provide protection for controls with easy access. ELJ hinges. Black mini quarter turn latches. UV stable polycarbonate viewing window. Gasket and hardware included. For outdoor application a drip shield and drain vent is recommended.

For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

Stainless Steel Type 304 with #4 brushed finish.

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

Recommend use as Type 3R rating if used in full outdoor exposure and extreme weather environments - the addition of ventilation is necessary to handle the large negative pressure differential caused in a tightly sealed enclosure in extreme weather conditions.
Temperatures that may exceed 140 degree F, such as outdoor in direct sunlight should be evaluated, shading or sun shield may be necessary.

For more details see Design Considerations When Specifying Your Enclosure on our website.

UL File #E69392
