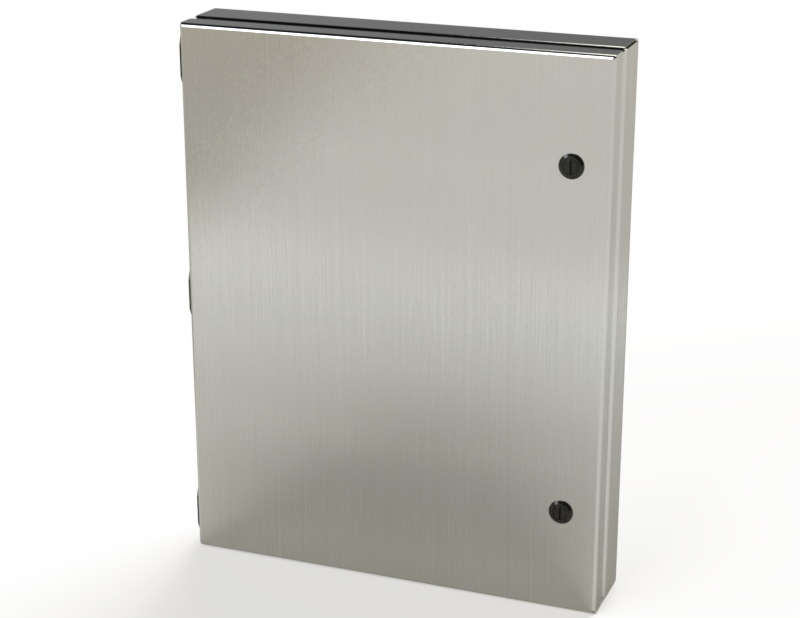

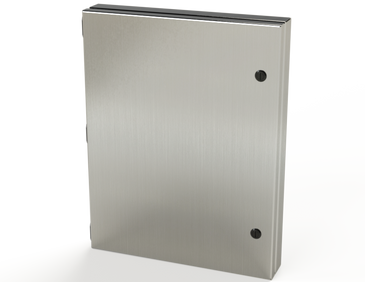

SCE-HA1814SS | NEMA 3R, 12, 4, 4X | Enclosure, S.S. Hinged Access, 18H x 14W x 2D | Saginaw

Brand: SaginawSKU: SCE-HA1814SS

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-HA1814SS

Overview & Specifications Reviews Parts & Accessories

Overview Details for SCE-HA1814SS

Application

Designed to house electrical controls, instruments and components used in an indoor or outdoor environment to provide a degree of protection for the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water (rain, sleet, snow). ELJ hinges. Black mini quarter turn latches. Gasket and hardware included.

For Details about the Design, Performance Expectations, Applications and Design Suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

Finish

Stainless Steel Type 304 with #4 brushed finish.

Industry Standards - (IS6)

NEMA Type 3R, 4, 4X, 12 and Type 13
UL Listed Type 3R, 4, 4X and 12
CSA Type 4, 4X and 12
IEC 60529
IP 66

Notes

Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.

Specifications

Item Number	SCE-HA1814SS
Brand	Saginaw
1 Enclosure Rating	NEMA 12
1 Enclosure Rating	NEMA 3R
1 Enclosure Rating	NEMA 4
1 Enclosure Rating	NEMA 4X
Enclosure Depth (IN)	2
Enclosure Height (IN)	18
Enclosure Type	Enclosure
Enclosure Width (IN)	14
